Technical İnfo :
Type: Dynamic (moving coil)
Frequency Response: 50 to 16,000 Hz
Polar Pattern: Supercardioid, rotationally symmetrical about microphone axis, uniform with frequency
Impedance: Rated at 150 _ (290 _ actual) for connection to microphone inputs rated low Z
Output Level (at 1,000 Hz)
Open Circuit Voltage: 71 dB*(0.28 mV)*0 dB = 1 v/_bar Hum Pickup (at 60 Hz)
Maximum 15.0 mV in 10 oe field
Maximum 26.5 dB equivalent SPL per 1 moe
Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector: 3-pin professional audio connector (male XLR)

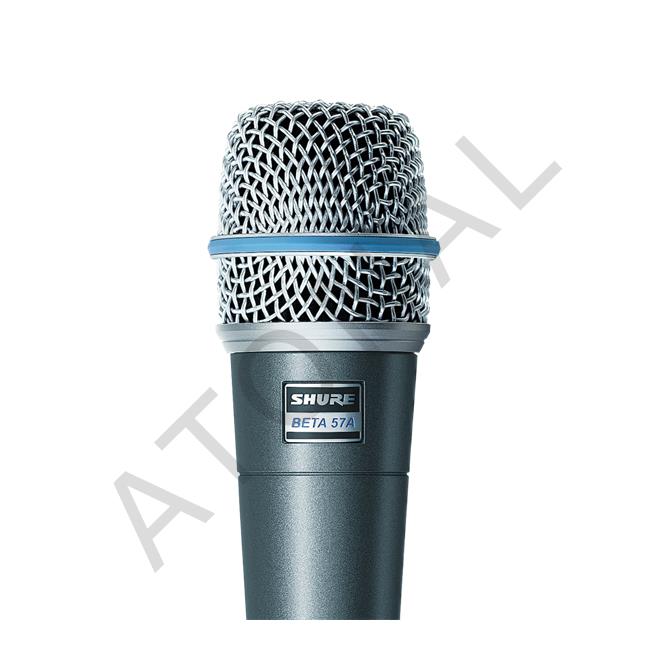

Case: Silver Blue enamel-painted die-cast metal with hardened, matte-finished steel mesh grille
Swivel Adapter: Slip-in, adjustable through 180
