Type
Dynamic, moving coil, Condenser, permanently polarized
Acoustical operating principle
Pressure gradient transducer
Transducer Ø
31.7 mm, 1.25 in
Transducer Ø
22.4 mm, 0.88 in
Polar pattern
Cardioid

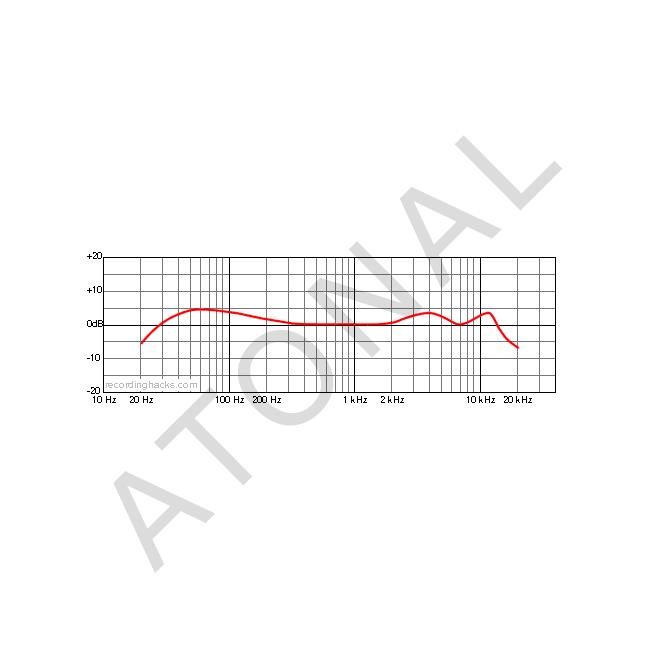

Frequency range (dynamic)
20 ... 16,000 Hz
Frequency range (condenser)
20 ... 20,000 Hz
EFR, ‘Enhanced Frequency Response' settings
Sensitivity, = // = FFR
0.4 mV/Pa (-69 dBV), dynamic
2 mV/Pa (-54 dBV), condenser
Sensitivity, + // = Dynamic EFR
0.4 mV/Pa, -69 dBV/Pa, dynamic
2 mV/Pa, -54 dBV/Pa, condenser
Sensitivity, + // + Dual EFR
Condenser and dynamic matched at 1 mV/Pa, -60 dBV
Equivalent noise level
28 dB (A)
Max. SPL for 0.5 % THD
150 dBSPL, 0 dB pre-attenuation
Dynamic range of mic. amp. (condenser)
122 dB
Pre-attenuation pad
0 dB
-10 dB
-20 dB
Rated impedance dynamic
500 Ω
Rated impedance condenser
200 Ω
Supply voltage
48 V ± 4 V
Current consumption
2 mA
Connector
Gold plated 3-pin and 5-pin XLR

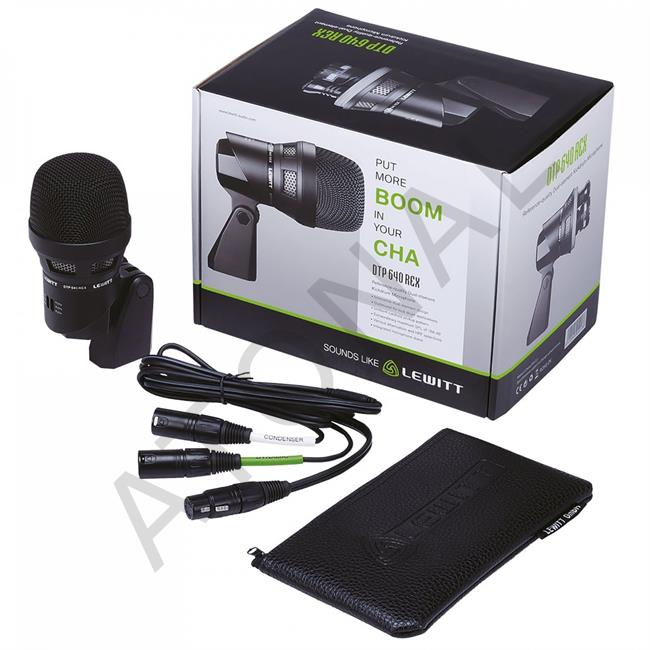

Cable
1.5 m (4.95’) dual shielded Y-cable, 5-pin XLR into two 3-pin XLRs
Microphone dimensions
71 dia. x 158 mm, 2.8 dia. x 6.2 in
Microphone net weight
