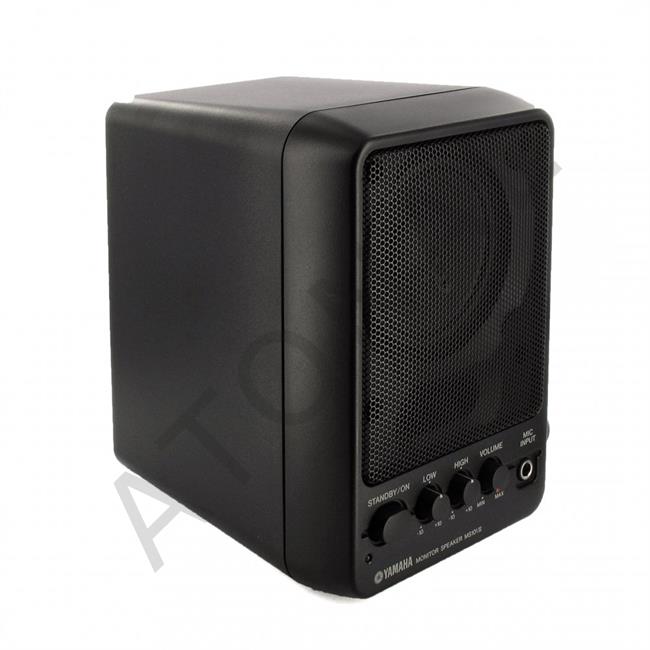

Type .......................................Bass Reflex Powered Speaker
Frequency Range ..................75 Hz — 18 kHz (LOW and HIGH controls at center)
Max. SPL ...............................97 dB SPL (10 W, 1 m on axis)
Dimensions (W × H × D) ........147 × 214 × 192 mm (5.8 × 8.4 × 7.6 in)
Weight....................................2.5 kg (5 lb 8 oz)
● SPEAKER SECTION
Components ..........................10 cm (4 in), Cone × 1
Sensitivity...............................87 dB SPL (1 W, 1 m on axis)
Nominal Impedance...............4 Ω
● AMP. SECTION
Output Power .........................10 W at 1 kHz, THD = 0.5%, RL = 4 Ω
Frequency Response.............30 Hz — 20 kHz
Input Sensitivity......................MIC: –45 dB / 2 kΩ / Phone Jack
/Impedance............................LINE 1: –10 dB / 10 kΩ / RCA Pin Jack
/Connectors ...........................LINE 2: –10 dB / 10 kΩ / Phone Jack
Hum & Noise.......................... –60 dB *(VOLUME: min, fc = 12.7 kHz, 6dB / oct LPF)
Controls .................................VOLUME
LOW: –15 dB — +7 dB at 75 Hz
HIGH: –13 dB — +8 dB at 10 kHz
POWER: “On/Off”
Power Consumption...............30 W
