Technical Data
Speaker Type

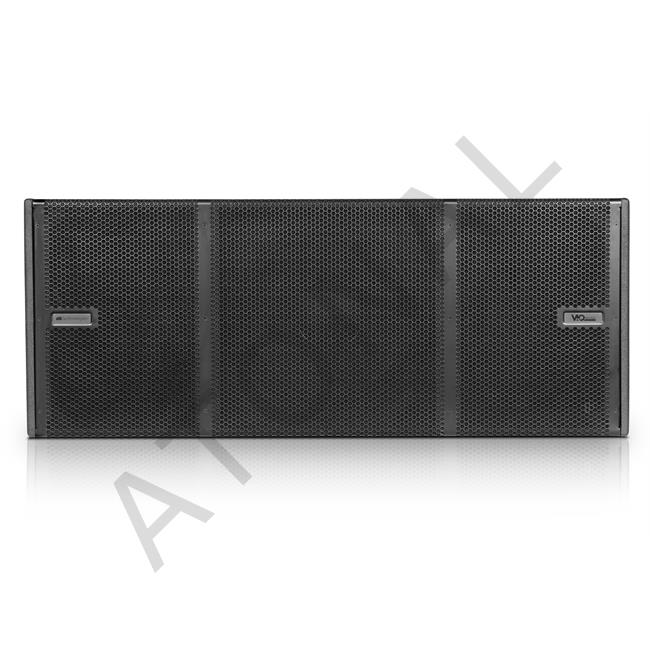

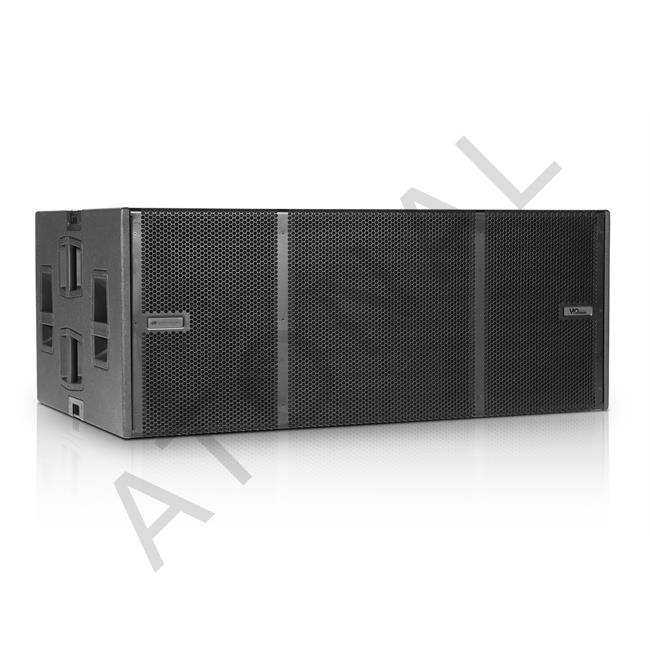

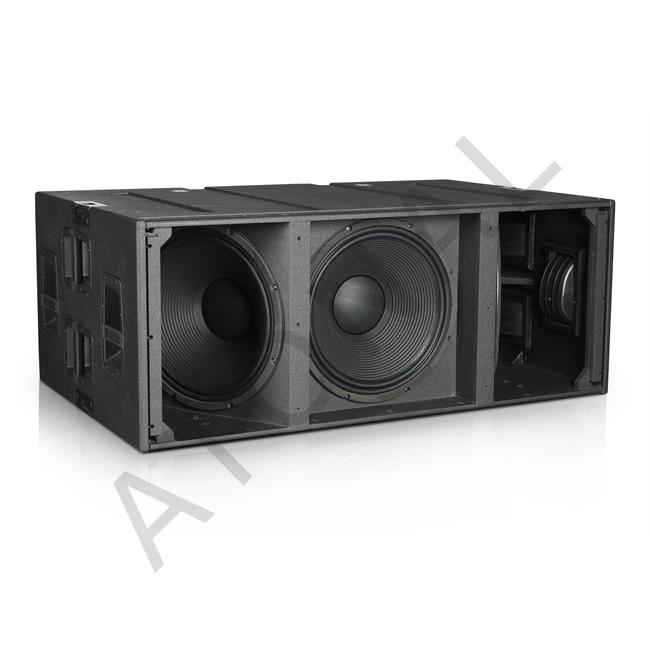

Active Bassreflex Semi-Horn-Loaded Subwoofer
Acoustical data
Frequency Response [- 6 dB]
39 Hz to Cut Freq (X-Over Dependent)
Frequency Response [- 10 dB]
35 Hz (HPF)
Directivity
Omnidirectional
Amplifier
Amp Technology
Digipro® G3
Power Supply
2700 W SMPS with Auto Range PSU
Processor
AD/DA Converter
24 bit/96 KHz
Limiter
RMS, Peak, Thermal
Delay Option
0-9.9 ms internal
Steps of 0.1 ms
Crossover Frequency LF-HF
70-105Hz + Full range
LF-Xover out slope
24 dB/Octave
Input
Signal Input
1xXLR balanced
1xRJ45 LINK (RDNet)
Signal Output
1x XLR balanced
1xRJ45 LINK (RDNet)
Power Socket
1xPowerCON TRUE1 IN
1xPowerCON TRUE1 OUT
Controls
1x Input Attenuation Rotary Switch
2x Rotary Encoder (Delay 9.9 ms)
1XPolarity Inversion Switch (0° or 180°)
1xCardioid Mode Switch
1x X-Over Freq Switch (70-105 Hz + Full Range (steps of 5 Hz)
Mechanics
Housing
Multiplex plywood
Polyurea painted

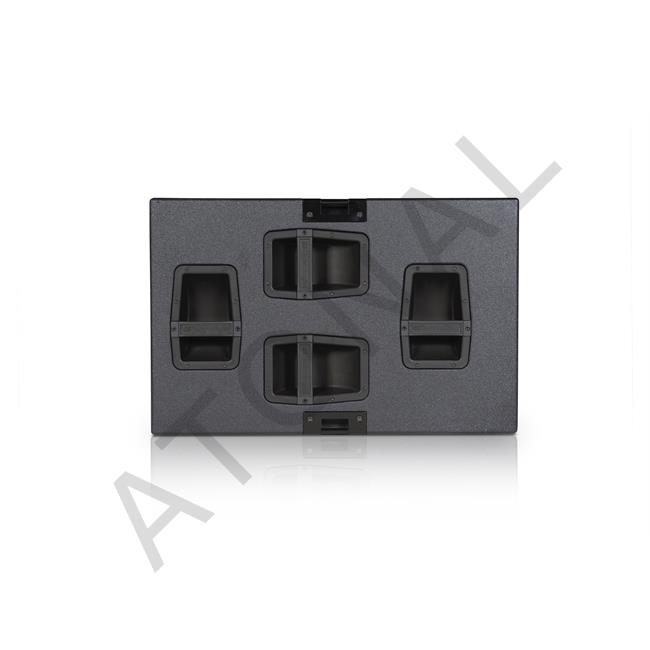

Handles
4x Per Side
Aluminium
Rigging Points
2xPick Points on top to fix DRK-210 rigging frame
Weight
103.9 kg (229.06 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
