Technical Data
Speaker Type

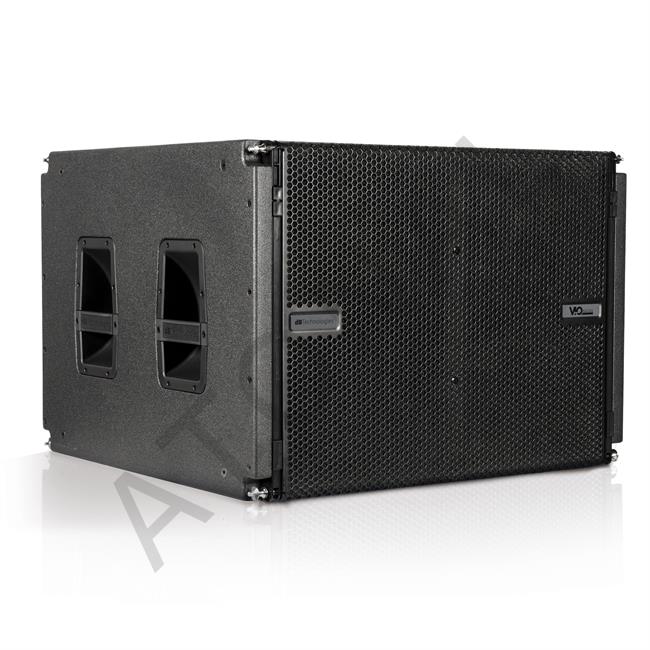

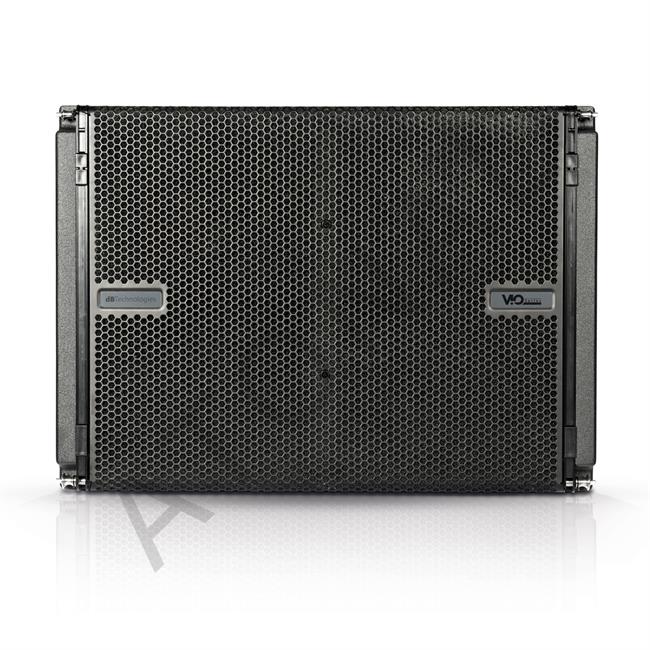

Active Horn-Loaded Flyable Subwoofer
Acoustical data
Frequency Response [- 6 dB]
36 Hz to Cut Freq (X-Over Dependent)
Frequency Response [- 10 dB]
33 Hz (HPF)
Directivity
Omnidirectional
Amplifier
Amp Technology
Digipro® G4
Power Supply
1600 W with PFC
Processor
AD/DA Converter
24 bit 96 kHz
Limiter
RMS, Peak, Thermal
Delay Option
0-9.9 ms internal
Steps of 0.1 ms
Crossover Frequency LF-HF
60-110Hz + Full range
LF-Xover out slope
24 dB/Octave

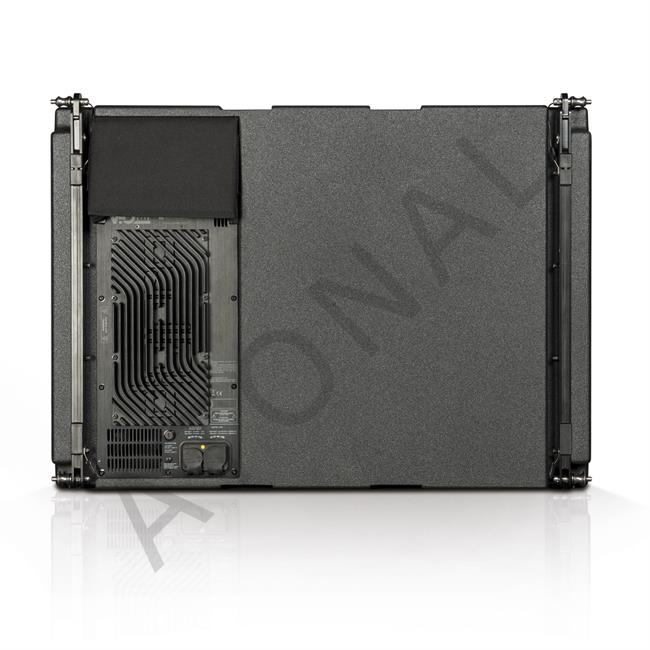

Input
Signal Input
1xXLR balanced
Signal Output
1x XLR balanced (link or X-over)
1xRJ45 LINK (RDNet)
Expansion Card
1xRJ45 IN (RDNet)
1xRJ45 LINK (RDNet)
Power Socket
1xPowerCON TRUE1 IN
1xPowerCON TRUE1 OUT
Controls
1x Input Attenuation Rotary Switch
1x Rotary Encoder (Delay 9.9 ms)
1XPolarity Inversion Switch (0° or 180°)
1xCardioid Mode Switch
1x X-Over Freq Switch (60-110 Hz + Full Range
1x System Auto-test
Mechanics
Housing
Multiplex plywood
Polyurea painted

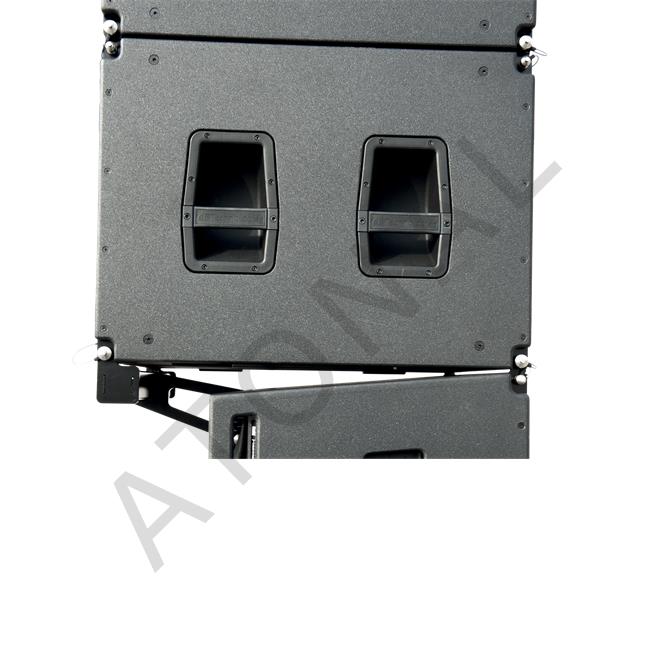

Handles
2x Per Side
Aluminium

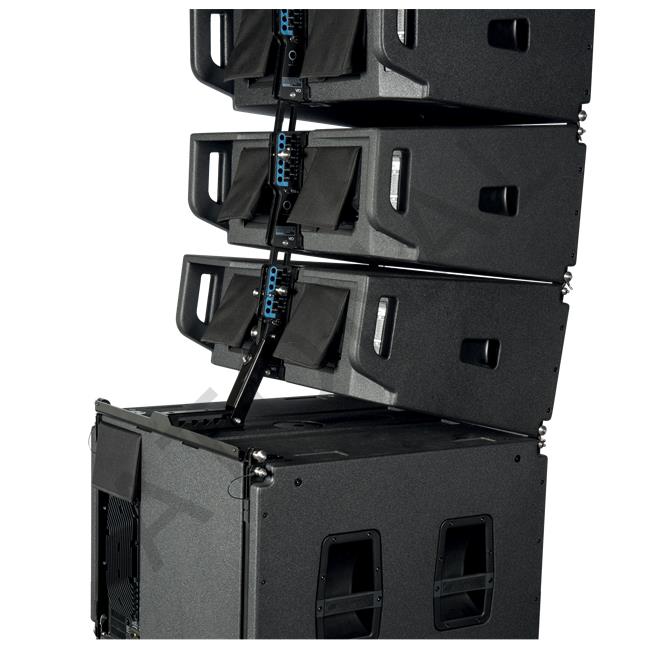

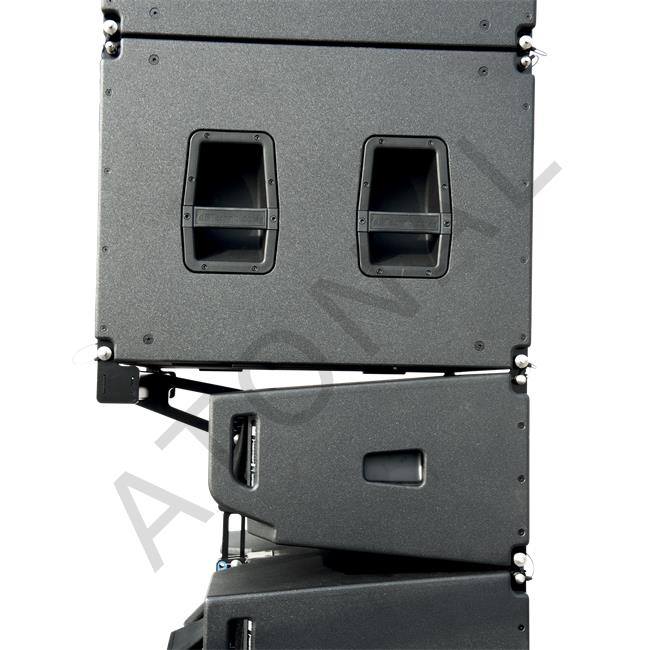

Rigging Points

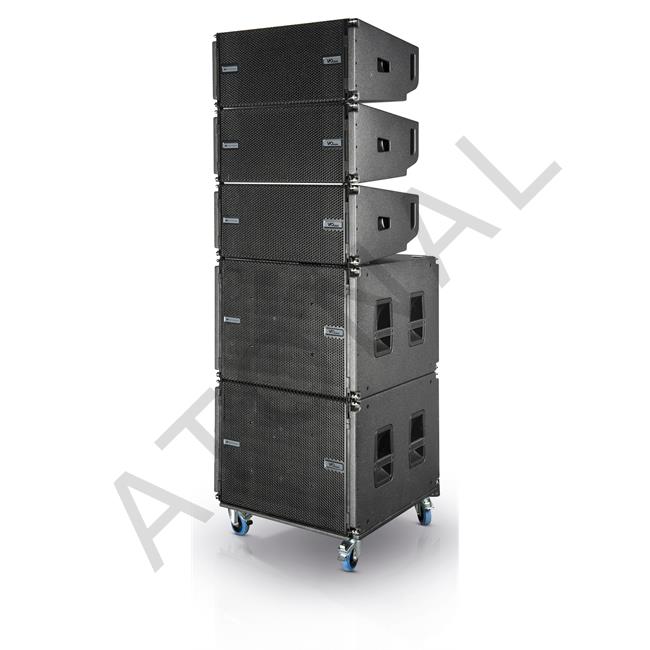

2xPick Points on top to fix DRK-210 rigging frame (stack use)
4x Pick Points on top and 4x on bottom for rigging
Weight
45.1 kg (99.42 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
