Technical Data
Speaker Type
Active Bass Reflex Subwoofer
Acoustical data
Frequency Response [- 6 dB]
35 Hz to Cut Freq (X-Over Dependent)
Frequency Response [- 10 dB]
32 Hz
Directivity
Omnidirectional
Amplifier
Amp Technology
Digipro® G4
Cooling
Convection + Internal Fan
Power Supply
Full-range PSU with PFC
Processor
AD/DA Converter
24 bit 96 kHz
Limiter
RMS, Peak, Thermal
Delay Option
0- 9.9 ms | steps of 0.1 ms [on-board]
0 - 62 ms [via RDNet]
Crossover Frequency LF-HF
Selectable 60-110Hz + Full range
LF-Xover out slope
24 dB/Octave
Input
Signal Input
1xXLR balanced
Signal Output
1x XLR balanced (link or X-over)
1xRJ45 LINK (RDNet)
Expansion Card
RDNet Card (1x RJ45 IN 1x RJ45 Link) [included]
Dante card [optional]
Mains Connections
1x PowerCON TRUE1 In
1x PowerCON TRUE1 Out
Controls
1x Input Attenuation Rotary Switch
1x Rotary Encoder (Delay 9.9 ms)
1x Polarity Inversion Switch (0° or 180°)
1x Cardioid Mode Switch
1x X-Over Freq Switch (60-110 Hz + Full Range
1x System Auto-test
Mechanics
Housing
Multiplex plywood
Polyurea painted

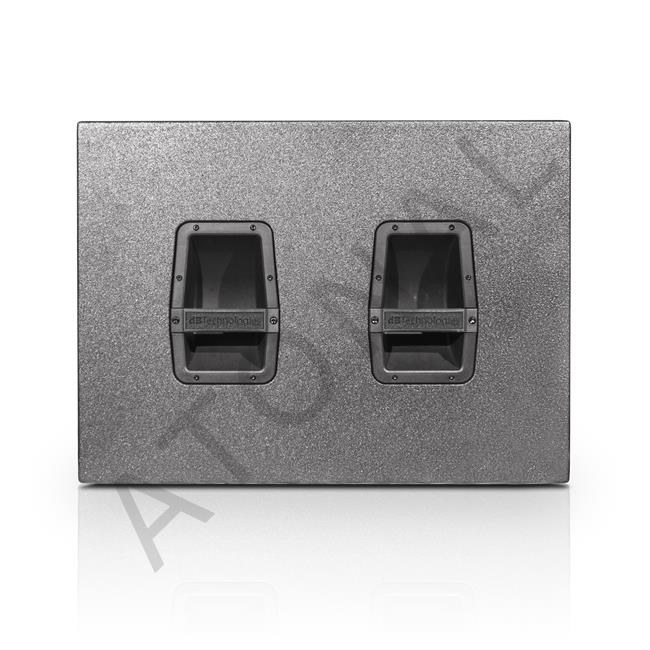

Handles
2x Per Side
Aluminium
Weight
47 kg (103.62 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
