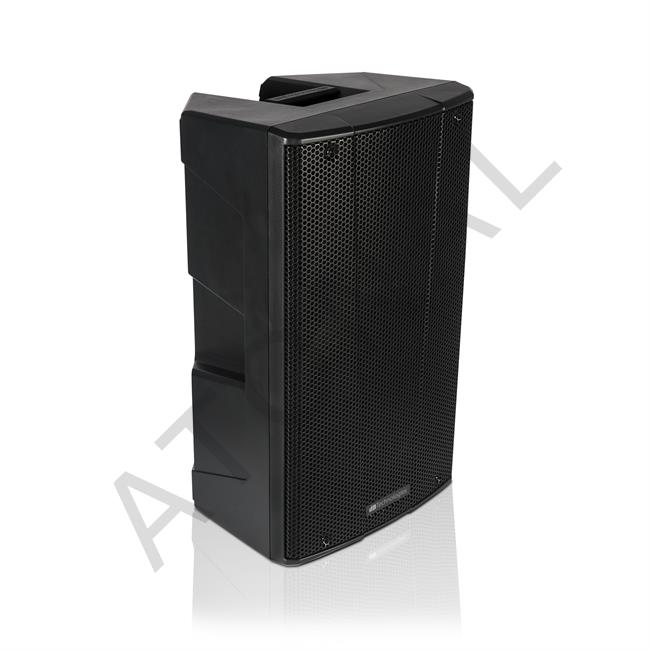

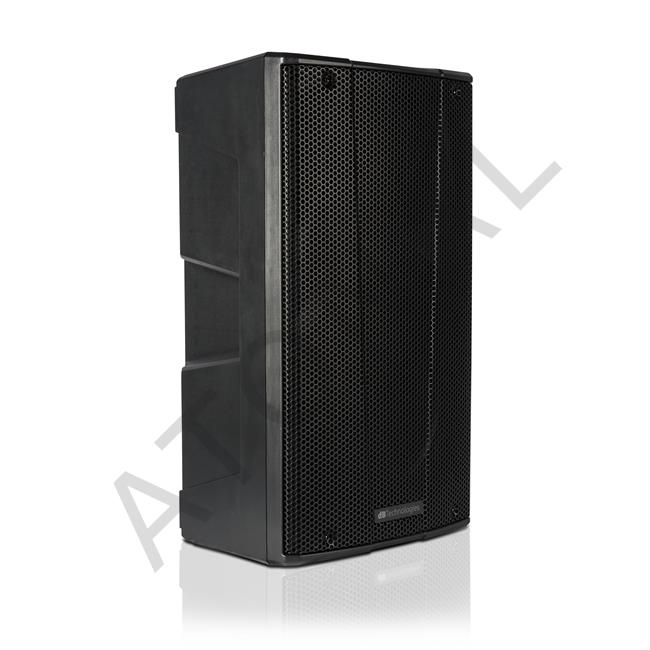

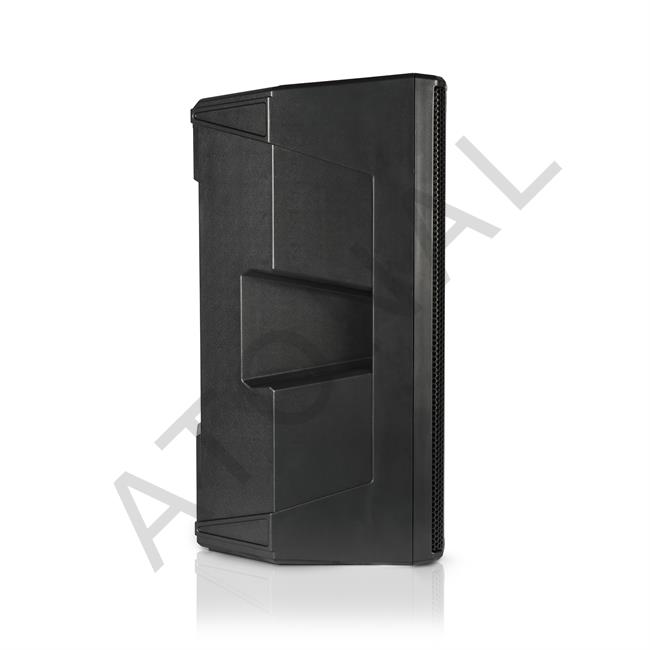

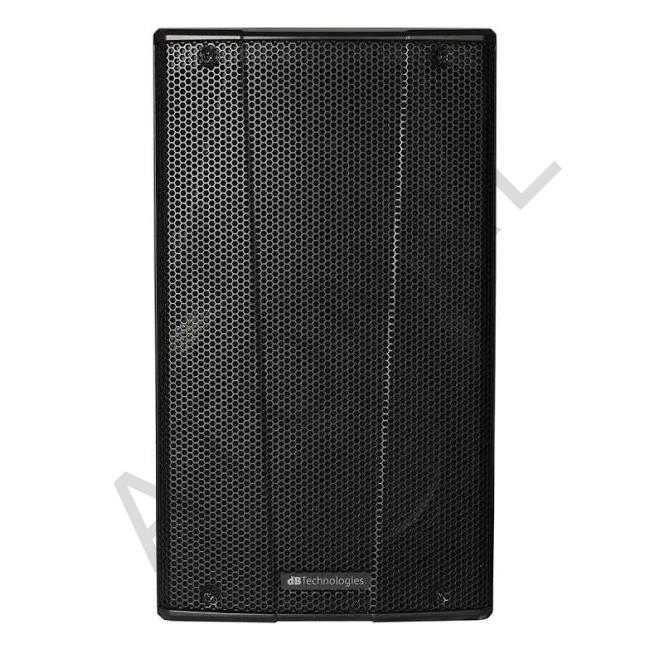

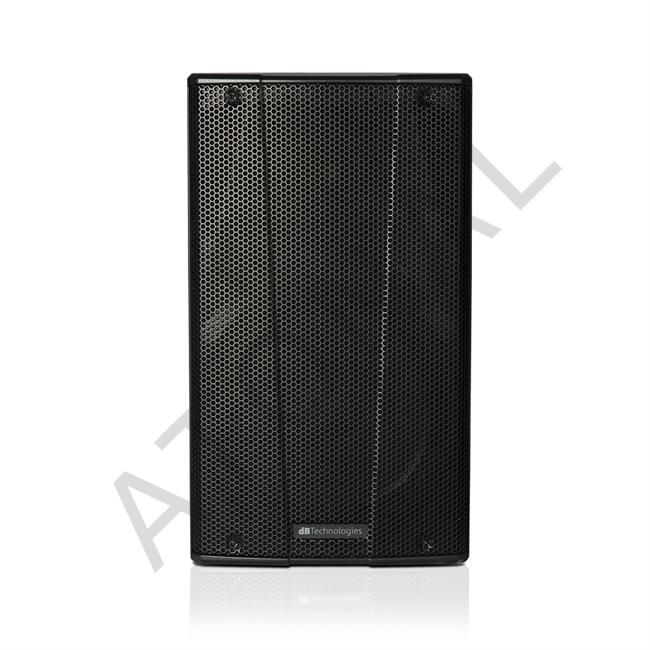

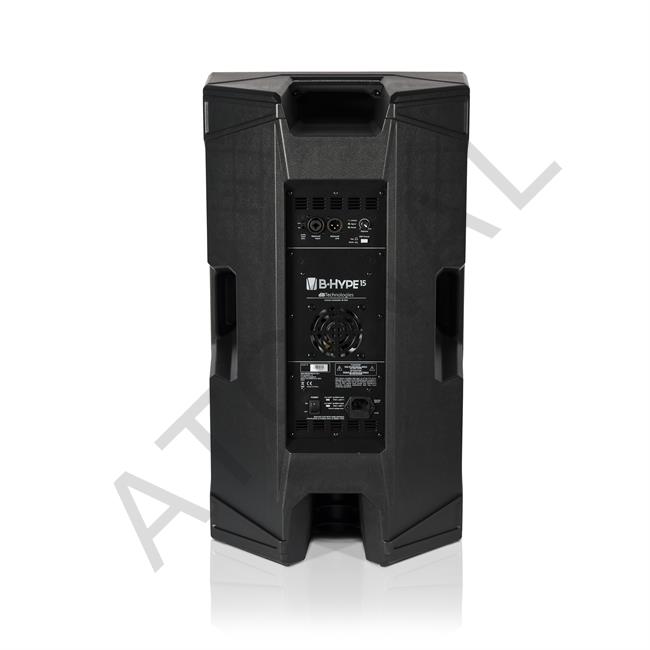

dB Technologies B-HYPE 15 15-inç 800W Aktif Hoparlör
Maximum efficiency up to 126,5 dB SPL
Professional acoustic performance
Innovative horn design for uniform and extended coverage
Compact featherweight
Clean and contemporary design enhancing portability
3 handles

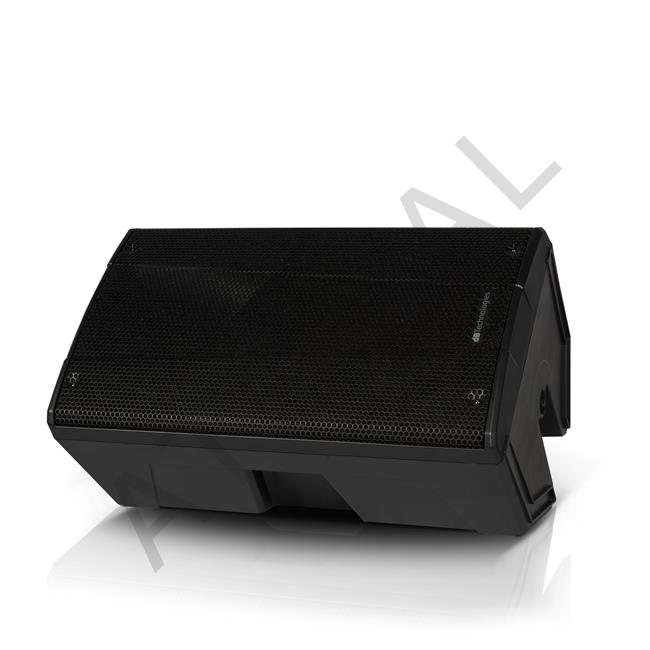

Double stage monitor angle
Preset EQ Flat /Boost
Acoustical data
Usable Bandwidth [-10dB]51 - 20.000 Hz
Frequency Response [-6 dB]57 - 19.700 Hz
Max SPL126.5 dB
Type HFCompression Driver
HF voice coil 1 "
LF15 "
LF voice coil 2 "
Crossover Frequency 2100 Hz (24 dB/oct.)
Horizontal Dispersion asymmetrical 85° up / 120°down
Vertical Dispersion 85° (+25/ -60°)
Amplifier
Amp TechnologyCustom Made
Amp ClassClass D - Passice cooling (convection)
Power Peak 400 W
Processor
ControllerDSP 28/56 bit- 48 kHz
LimiterPeak, RMS, Thermal
Controls Volume, Audio Input Sensitivity, DSP Preset
Input
Main Connection VDE
Signal Input Balanced 1xCombo IN (MIC/LINE)
SIGNAL Out (Balanced) 1xXLR OUT (LINK)
Mechanics
HousingPolypropylene
Grille Full Metal Grille
Handles 3 (2 on side 1 on top)
Pole Mount 36 mm
Width415 mm (16.34 in)
Height725 mm (28.54 in)
Depth391 mm (15.39 in)
Weight17.4 kg (38.36 lbs)
Angles UpDouble wedge angle 45°
