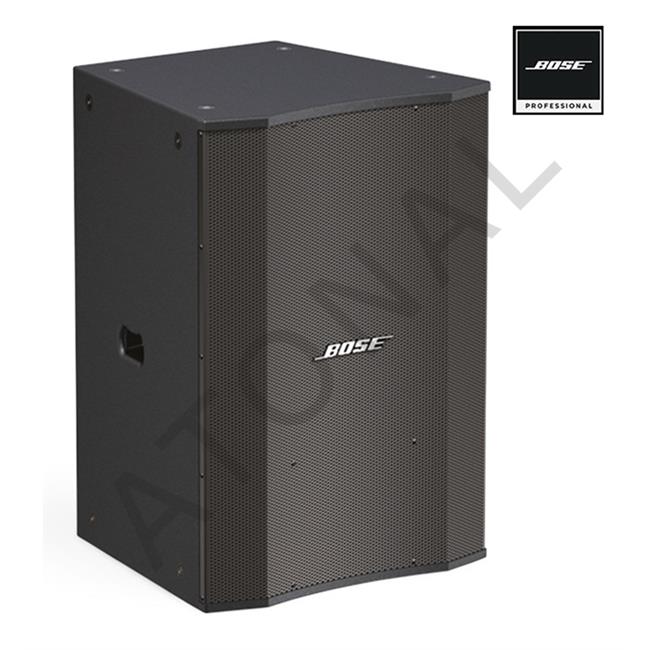

Technical Specifications
System Performance
Frequency Response (+/-3 dB)1
50 Hz - 16 kHz
Frequency Range (-10 dB)1
42 Hz - 18 kHz
Nominal Dispersion 90° H x 40° V
Sensitivity (SPL / 1 W @ 1 m)2
95 dB SPL
Maximum SPL @ 1 m3
122 dB SPL (128 dB SPL peak)
Crossover Type Passive, Bi-Amp, Switchable
Crossover Frequency 300 Hz and 1.8 kHz passive, 300 Hz bi-amp
Recommended High-Pass Filter 40 Hz with 4th order filter (24 dB / octave)
Loudspeaker EQ Recommended
Long-Term Power Handling4
Passive Bi-Amp
Mid High
500 W (2000 W peak) 300 W (1200 W peak) 100 W (400 W peak)
Nominal Impedance 8 Ω 8 Ω 8 Ω
Transducers
Driver Compliment HF: 1.75" (44 mm) voice coil compression driver
MF: Bose V2 midrange manifold with 2 x 4.5" (114 mm) cone drivers
LF: 15" (381 mm) woofer with 4" (102 mm) voice coil
Physical
Enclosure Baltic birch plywood, 13-ply, 18 mm
Finish Polyurethane-based textured paint, black or white
Grille 16-gauge perforated steel grille with powder-coated finish
Environmental Indoor use only
Connectors Two (2) parallel-wired NL4 Neutrik® Speakon® connectors
Suspension / Mounting Sixteen (16) points SAE 3/8" - 16 threaded inserts (4 each: top, bottom, sides), steel
Dimensions 34.4" H x 24.1" W x 22.6" D (873 mm x 612 mm x 575 mm)
Net Weight 142 lb (64.4 kg)
Shipping Weight 165 lb (74.5 kg)
