Titan 12, 12’’ 1000 W Pasif Kabin Siyah

Fiyat Sorunuz

05412593012

05065462775

Stokta Var

♦ Atonal tarafından sunulan her ürün Türkiye Distribütörü tarafından garanti altına alınmış ürünlerdir.
♦ Faturanız, garantinin tarafınıza sağlandığının bir göstergesidir.
♦ Siparişleriniz 1-4 gün içinde belirttiğiniz adrese sevk edilmektedir.
♦ Çalışma saatlerimiz Hafta İçi 08:00 - 17:00 dir.
♦ Projeler ve Taahhüt İşleri için info@atonal.com.tr adresine proje verilerinizi gönderebilrisiniz.
♦ Güncel Stok, Özel Fiyatlar ve Teknik Bilgilendirme için 02322901052 'i arayabilirsiniz.
♦ Ürünler MNG Kargo ile kayıtlı adresinize gönderilmektedir.

Woofer Boyutu

Tweeter Boyutu

Çıkış Gücü (Wrms)

250

Çıkış Gücü (Wpeak)

1000

SPLmax (dB)

128

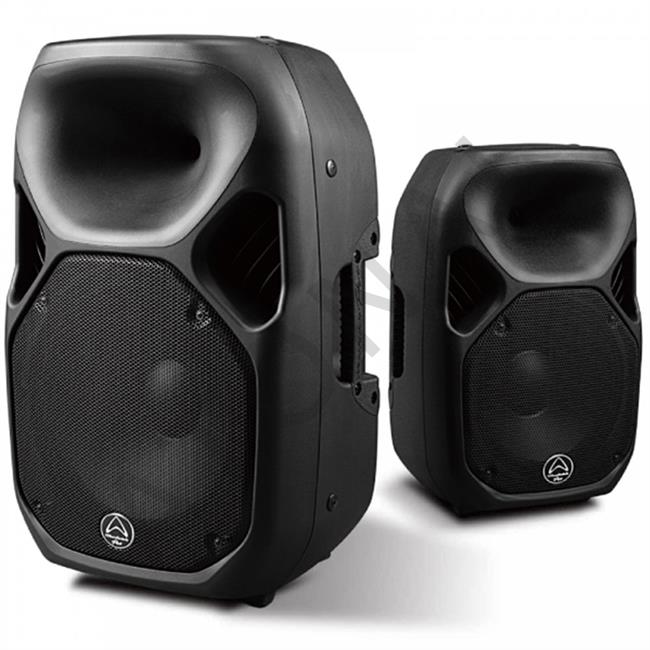

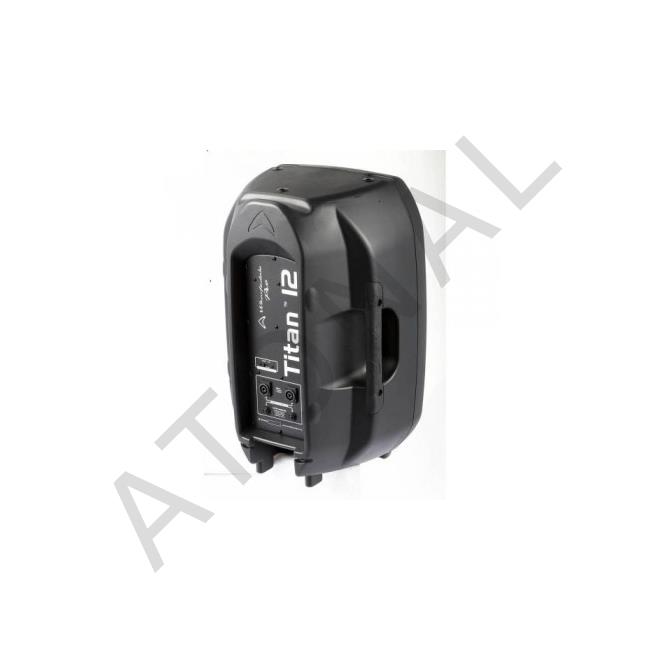

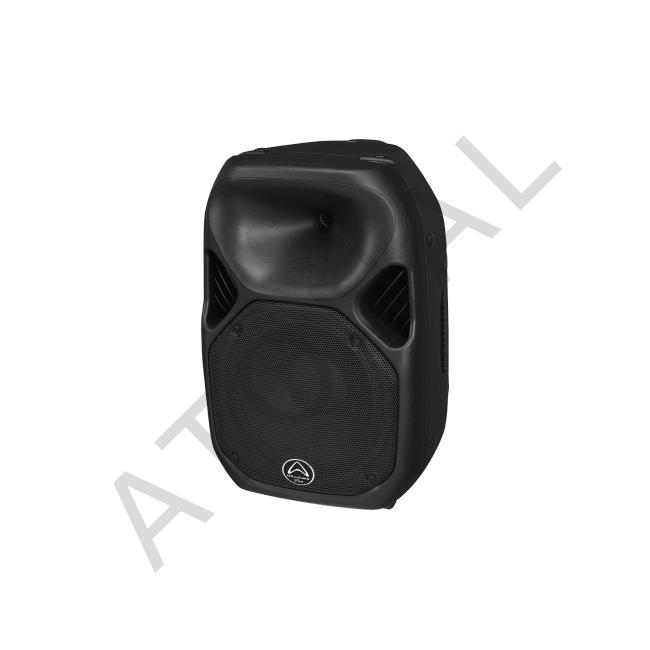

Wharfedale Titan 12, 12’’ 1000 W Pasif Kabin Siyah

Teknik Bilgiler
Taksit Seçenekleri

Model Name	Titan 8	Titan-12Z	Titan-15Z	Titan-X12	Titan-X15
System Type	Passive	Passive	Passive	Passive	Passive
Configuration	8″ 2-way	12” 2-way	15″ 2-way	12” 2-way	15″ 2-way
Frequency Response (+/-3 dB)	70 – 20 KHz	55 Hz-20 KHz	45 Hz-20 KHz	55 Hz-20 KHz	55 Hz-20 KHz
Frequency Range (-10 dB)	65 – 20 KHz	50 Hz-20 KHz	40 Hz-20 KHz	50 Hz-20 KHz	40 Hz-20 KHz
Sensitivity (2.83 v / 1 m)	96 dB	99 dB	99 dB	98 dB	97 dB
Calculated Maximum SPL @1 m	124 dB	132 dB	133.5 dB	128 dB	129 dB
System Rated Impedance	8 Ω	8 Ω	8 Ω	8 Ω	8 Ω
Low Frequency Transducer
Size	203 mm / 8″	305 mm / 12’’	381 mm / 15″	305 mm / 12”	381 mm / 15″
Voice Coil Size	38.86 mm / 1.53″	75 mm / 3.0’’	100 mm / 4.0″	64.26 mm / 2.5”	75 mm / 3.0″
Rated Impedance	8 Ω	8 Ω	8 Ω	8 Ω	8 Ω
LF Power (re:AES2-2012)	150 w	500 w	700 w	250 w	400 w
High Frequency Transducer
HF Driver Type	Compression Driver	Compression Driver	Compression Driver	Compression Driver	Compression Driver
Voice Coil Size	25 mm / 1″	44 mm / 1.75″	50 mm / 2.0”	44 mm / 1.75”	44 mm / 1.75”
Exit Size	30 mm / 1.2″	25 mm / 1″	25 mm / 1″	25 mm / 1”	25 mm / 1”
Diaphragm Material	Mylar	Titanium	Titanium	Titanium	Titanium
Rated Impedance	8 Ω	8 Ω	8 Ω	8 Ω	8 Ω
HF Power (re:AES2-2012)	20 w	40 w	50 w	40 w	40 w
Nominal Coverage (H x V)	Elliptical waveguide 90° x 60°	Hybrid Symmetry Horn 100°x80°	Hybrid Symmetry Horn 100°x80°	Hybrid Symmetry Horn 100°x80°	Hybrid Symmetry Horn 100°x80°
Power
System Power AES (RMS)	150 w	500 w	700 w	250 w	400 w
System Programme Power	300 w	1000 w	1400 w	500 w	800 w
System Peak Power	600 w	2000w	2800 w	1000 w	1600 w
Crossover frequency	2-way 2.4 KHz / Linkwitz-Riley	2.1 KHz	2.1 KHz	2.6 KHz	2.7 KHz
Input Connector	2 x NL4 (speakON compatible) 2 x 1/4″ Jack	2 x NL4 (speakON compatible)	2 x NL4 (speakON compatible)	2 x NL4 (speakON compatible)	2 x NL4 (speakON compatible)
Hardware
Pole Mount	35 mm with lock screw	35 mm with lock screw	35 mm with lock screw	35 mm with lock screw	35 mm with lock screw
Handles	1 on side	2 on sides	2 on sides	2 on sides	2 on sides
Mounting points	M6 * 8	M8 * 10	M8 * 10	M8 * 10	M8 * 10
Enclosure
Enclosure Material	Trapezoidal / Polypropylene	Trapezoidal / Polypropylene	Trapezoidal / Polypropylene	Trapezoidal / Polypropylene	Trapezoidal / Polypropylene
Finish	Grey, Black, White	Black / white	Black / white	Black / white	Black / white
Grille Material & Finish	1.2 steel	1.2 steel	1.2 steel	1.2 steel	1.2 steel
Dimensions – Unpacked
Height	396 mm / 15.59″	582.7 mm / 22.9”	728.5 mm / 28.7”	582.7 mm / 22.9”	728.5 mm / 28.7″
Width Front	266 mm / 10.47″	384.6 mm / 15.1″	480.6 mm / 18.9”	384.6 mm / 15.1”	480.6 mm / 18.9″
Width Rear	266 mm / 10.47″	384.6 mm / 15.1″	480.6 mm / 18.9”	384.6 mm / 15.1”	480.6 mm / 18.9″
Depth	221 mm / 8.7″	318.6 mm / 12.5”	395.6 mm / 15.6”	318.6 mm / 12.5”	395.6 mm / 15.6″
Dimensions – Packed
Height	463 mm / 18.2″	663 mm / 26.1″	830 mm / 32.7″	663 mm / 26.1”	830 mm / 32.7″
Width Front	325 mm / 12.8″	435 mm / 17.1″	514 mm / 20.2″	435 mm / 17.1”	514 mm / 20.2″
Width Rear	325 mm / 12.8″	435 mm / 17.1″	514 mm / 20.2″	435 mm / 17.1”	514 mm / 20.2″
Depth	282 mm / 11.1”	408 mm / 16.1″	489 mm / 19.3″	408 mm / 16.1”	489 mm / 19.3″
Weight
Net Weight (kg / lbs)	5.5 kg / 12.1 lbs	15.7 kg / 34.5 lbs	25.8 kg / 56.8 lbs	12.0 kg / 26.4 lbs	22.0 kg / 48.4 lbs
Gross Weight (kg / lbs)	7.5 kg / 16.5 lbs	18.8 kg / 41.2 lbs	30.6 kg / 67.3 lbs	15.1 kg / 33.2 lbs	26.8 kg / 59.0 lbs
