Technical Data

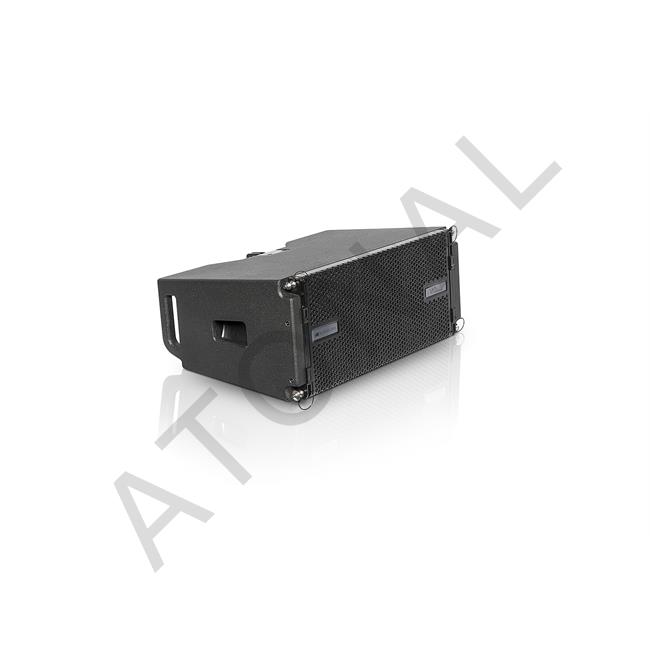

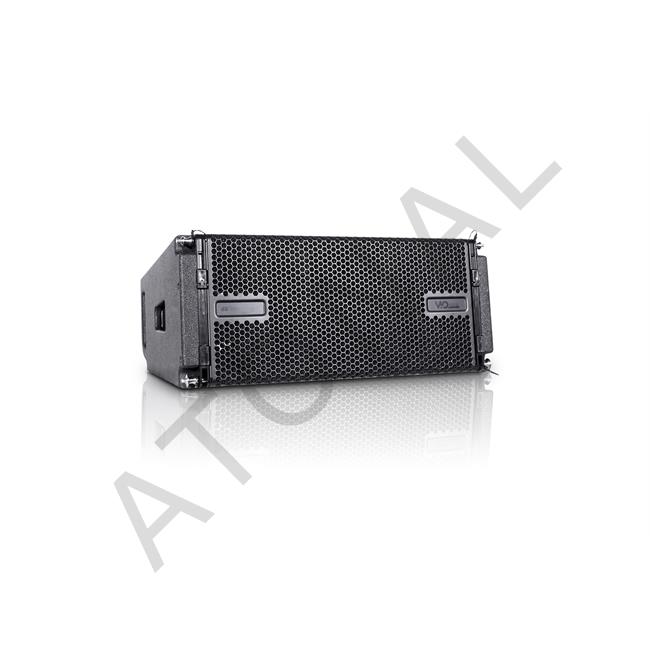

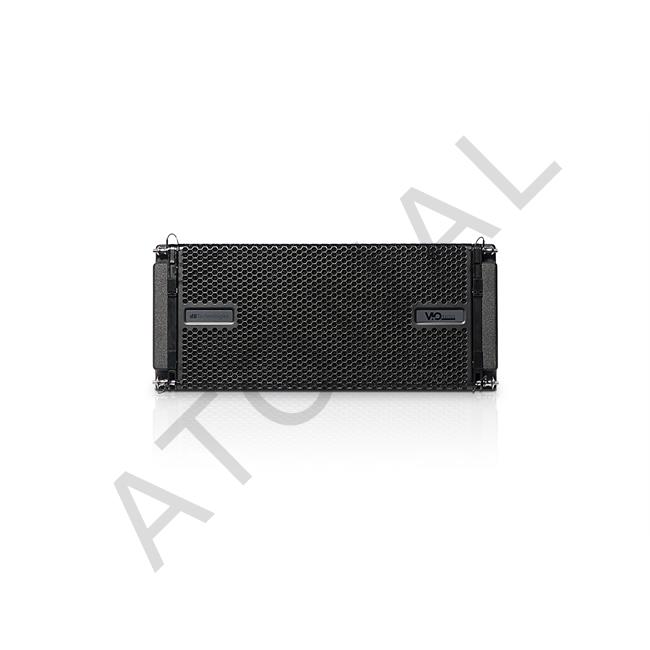

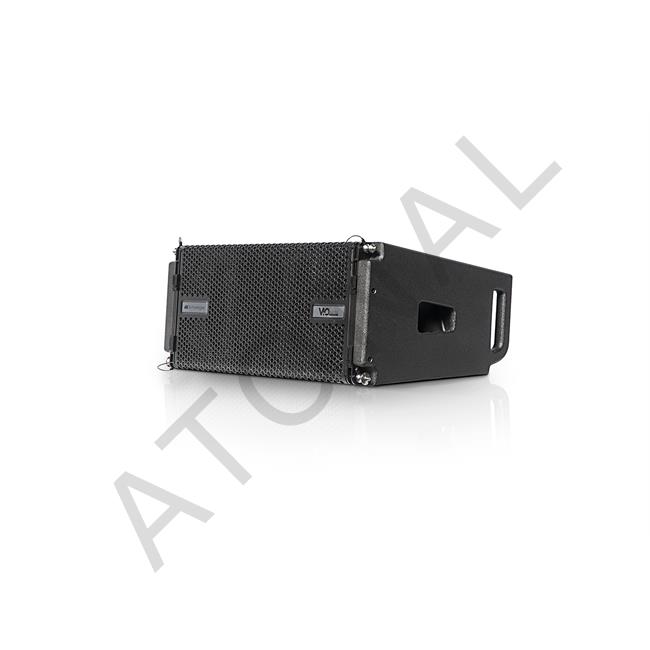

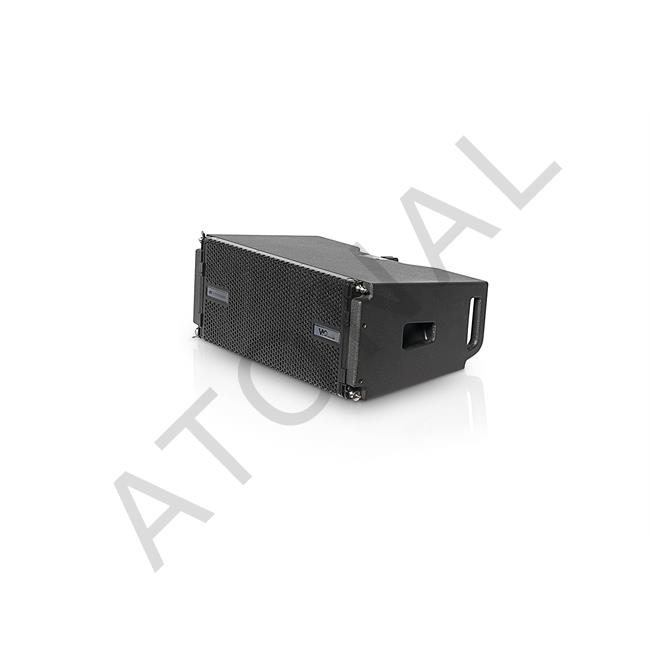

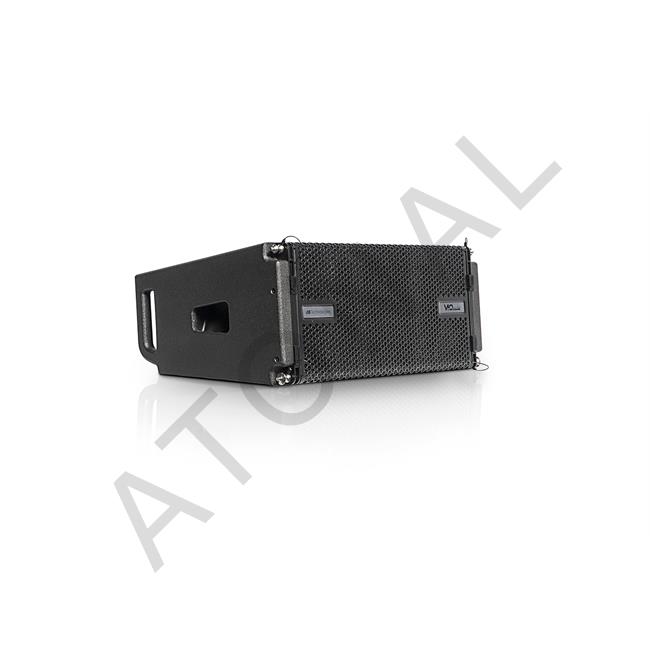

Speaker Type2-way Active Line Array Module
Acoustical data
Usable Bandwidth [- 6 dB]75 Hz - 20 KHz
Frequency Response [+/- 3dB]85 Hz -18,1 KHz
Max SPL133.5 dB
HF1x1.4"
Voice Coil HF3"
Type HFNeodymium

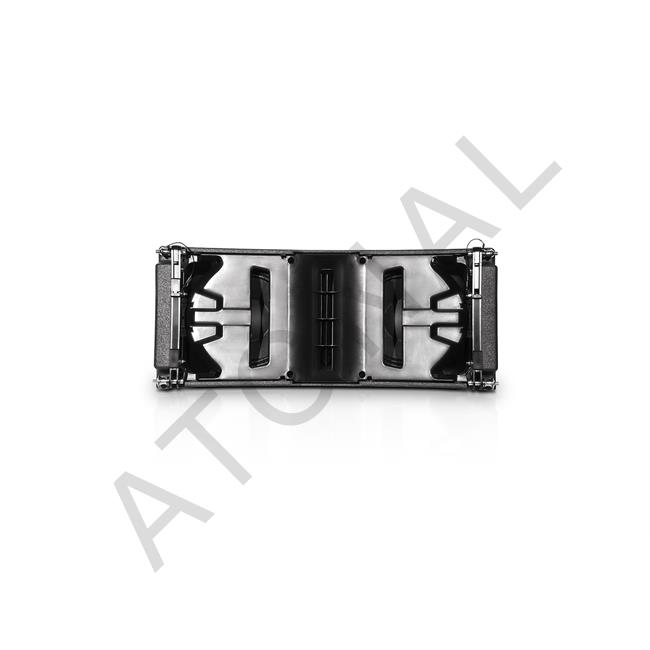

LF 2x8"
Voice Coil LF2"
Type LFNeodymium
Horizontal Directivity100°
Vertical Directivitydepends on array size and configuration
Amplifier
Amp TechnologyDigipro G3 [bi-amped]
Amp ClassClass-D
Power RMS900 W
Peak Power1800 W
CoolingConvection
Power Supply 900 W SMPS with Auto-range PSU
Processor
ControllerDSP 28/56 bit
AD/DA Converter24 bit/48 KHz
LimiterDual Active Peak, RMS, Thermal
Processing (filters)FIR Linear Phase Filters
Crossover Frequency LF-HF1000 Hz
Input
Signal Input1xXLR fem, Bal.
Signal Output1xXLR male, Bal.
Network RDNet remote control RJ45 connector IN/OUT
Mains Connections1x PowerCON TRUE1 In
1x PowerCON TRUE1 Out
Controls 1xSpeakers Coupling (7 presets)
1x HF Compensation (8 presets)
1XInput Attenuation Rotary Switch
Mechanics
HousingMultiplex Plywood
Polyurea painted
Handles1 x Side, 2 on back

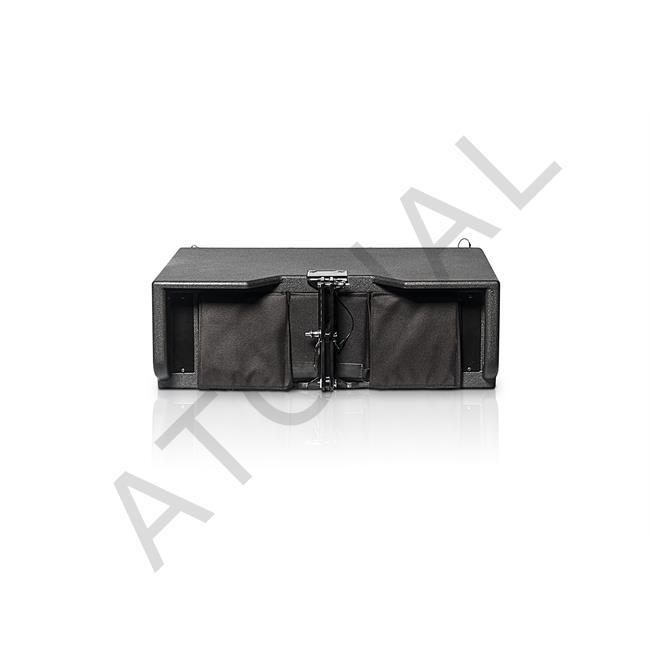

Rain Cover Included
Rigging PointsIntegrated 3-point flying hardware
Width600 mm (25.98 in)
Height260 mm (10.23 in)
Depth390 mm (15.35 in)
Weight18.1 Kg (39.9 lbs)
