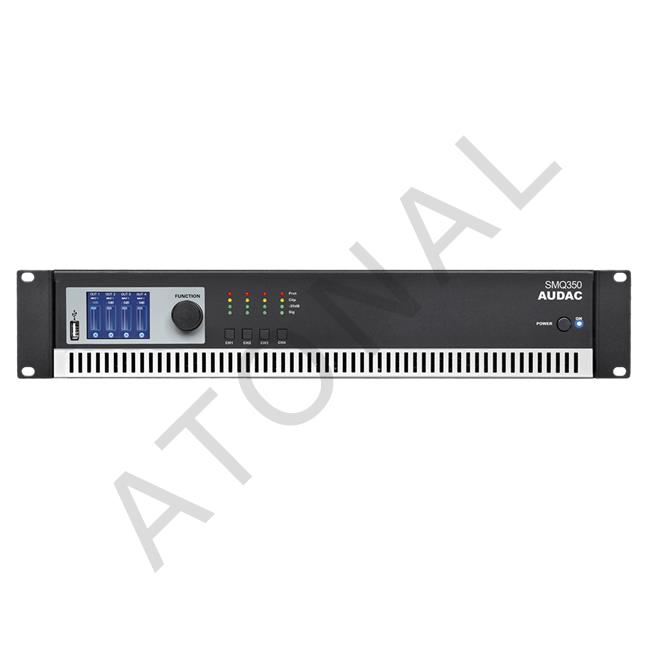

Audac SMQ350 Dijital Güç Amplifikatörü 4x350W 4 ohm
Signal / Noise > 95 dB
THD+N (@ 1 kHz) < 0.05% (1/2 Rated Power)
Crosstalk (@ 1 kHz) > 70 dB
Technology Class-D
Common mode rejection ratio 70 dB
Damping factor > 200
Cooling Temperature controlled FAN
Operating temperature 0° ~ 40° @ 95% Humidity
RMS Power @ 4 Ω Stereo 4 x 350 W
@ 8 Ω Stereo 4 x 220 W
@ 8 Ω Bridge 2 x 700 W
Frequency Response (± 3 dB) 20 Hz - 20 kHz
Inputs Sensitivity (1W/1m) -19.5 dB ~ 27 dB
Impedance 10 kΩ balanced

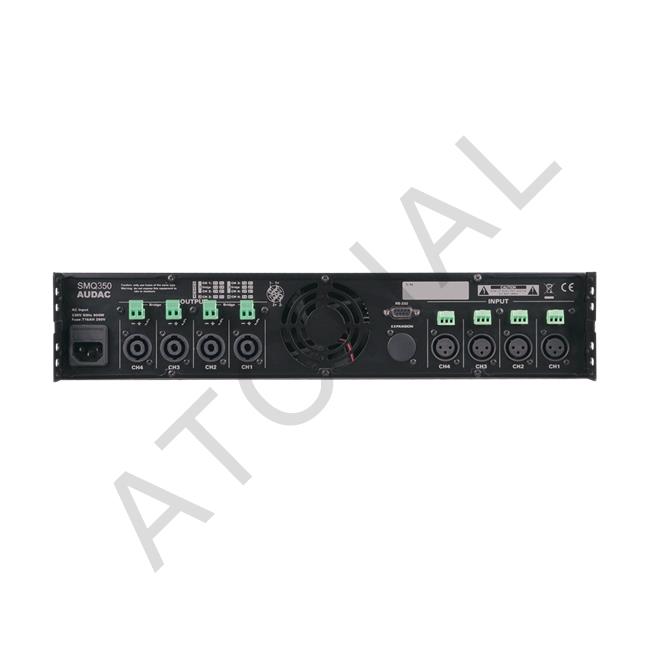

Connector XLR & 3-pin Euro Terminal Block (3.81 mm)
Outputs Connector Speakon compatible & 2-pin Euro Terminal Block (5.08 mm)
Protection Amplifier DC Short circuit
Over heating
Over load
Signal limiting
Loudspeaker Power limiter
Access User & Administrator level (Through password and USB-key protection)
Power Supply Switching mode
Source 230 ~ 240 V AC / 50 ~ 60 Hz
Dimensions 482 x 88 x 420 mm (W x H x D)
