Type
Dynamic, moving coil
Acoustical operating principle
Pressure gradient transducer
Polar pattern
Supercardioid
Frequency range
40 ... 18,000 Hz
Sensitivity
3.5 mV/Pa, -49 dBV/Pa
Signal / noise ratio
75 dB (A)
Equivalent noise level
19 dB (A)
Dynamic range, passive mode
135 dB
Dynamic range, active mode
121 dB, 0 dB gain
115 dB, 6 dB gain
109 dB, 12 dB gain

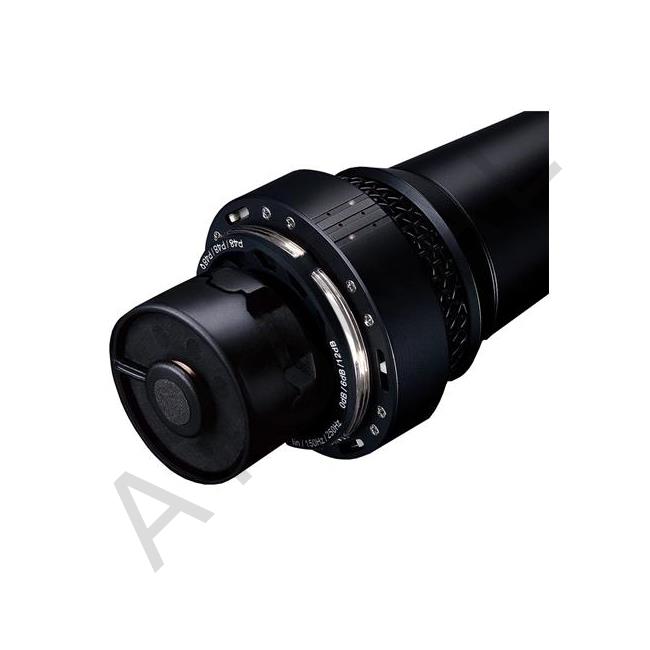

Gain settings, active mode
0 dB, 6 dB, 12 dB
Low-cut filter
linear
150 Hz (12 dB/oct)
250 Hz (12 dB/oct)
Internal impedance
600 Ω
Rated load impedance
1,000 Ω
Supply voltage
48 V ± 4 V
Current consumption
5.5 mA
Connector
Gold plated 3-pin XLR
Microphone dimensions
51 dia. x 183 mm, 2 dia. x 7.2 in
Microphone net weight
