| Performance |
| Frequency Range (-10 dB) |
45 Hz – 138 Hz |
| Maximum Peak SPL at 1 m |
134 dB |
| Electronics and Connectors |
| Nominal Amplifier Power (continuous) |
600 W |
| Nominal Amplifier Power (peak) |
1200 W |
| Input Type |
Balanced |
| Input Impeadance |
20 kohms |
| Input Sensitivity |
1.95 V (+8 dBu) |

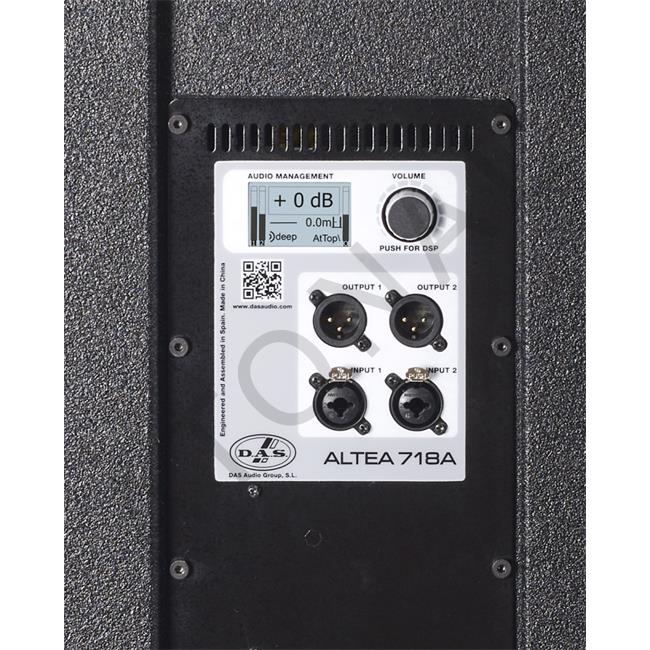

| Audio Signal Input Connector |
2 x Female XLR |
| Audio Signal Loop Thru Connector |
2 x Male XLR |
| Control |
DAScontrol™ |
| AC Input Connector |
IEC |
| Operating Range |
180-250 VAC |
| Current Draw 230 V |
1.4 A |
| Enclosure |
| Enclosure Construction |
Birch Plywood |
| Enclosure Geometry |
Rectangular |
| Rigging |
M10 Rigging Points |
| Finish |
ISO-flex Paint |
| Color |
Black |
| Dimensions ( H x W x D ) |
720 x 545 x 650 mm
28,4 x 21,5 x 25,6 in |
| Net Weight |
42,0 kg ( 92,6 lb ) |
| Components |
| LF Driver |
18FW4 |
| Shipping |
| Carton Dimensions ( H x W x D ) |
820 x 600 x 700 mm
32,3 x 23,6 x 27,6 in |
| Shipping Weight |
46,5 kg ( 102,5 lb ) |
