| Performance |
| Frequency Range (-10 dB) |
60 Hz – 20 kHz |
| Horizontal Coverage (-6 dB) |
90º |
| Vertical Coverage |
60º |
| Maximum Peak SPL at 1 m |
130 dB |
| Electronics and Connectors |
| Nominal Amplifier Power (continuous) |
750 W |
| Nominal Amplifier Power (peak) |
1500 W |
| Input Type |
Balanced |
| Input Impeadance |
20 kohms |
| Input Sensitivity |
1.95 V (+8 dBu) |

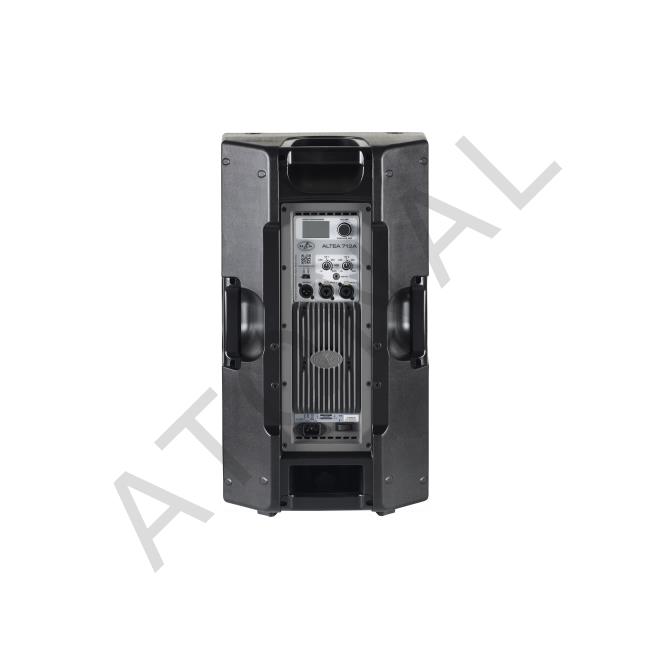

| Audio Signal Input Connector |
2 x Female XLR |
| AUX Input |
1 x 3.5 mm Mini Jack |
| Audio Signal Loop Thru Connector |
1 x Male XLR |
| Control |
DASlink™
DAScontrol™ |
| AC Input Connector |
IEC |
| Operating Range |
90-250 VAC |
| Current Draw 115 V |
3.0 A |
| Current Draw 230 V |
1.5 A |
| Enclosure |
| Enclosure Construction |
Polypropylene |
| Enclosure Geometry |
Trapezoidal |
| Rigging |
M8 Rigging Points |
| Finish |
Textured |
| Color |
Black |
| Dimensions ( H x W x D ) |
655 x 380 x 350 mm
25,8 x 15,0 x 13,8 in |
| Net Weight |
17,5 kg ( 38,6 lb ) |
| Components |
| LF Driver |
12F4 |
| HF Driver |
M-28 |
| Shipping |
| Carton Dimensions ( H x W x D ) |
740 x 450 x 415 mm
29,1 x 17,7 x 16,3 in |
| Shipping Weight |
20,5 kg ( 45,2 lb ) |
