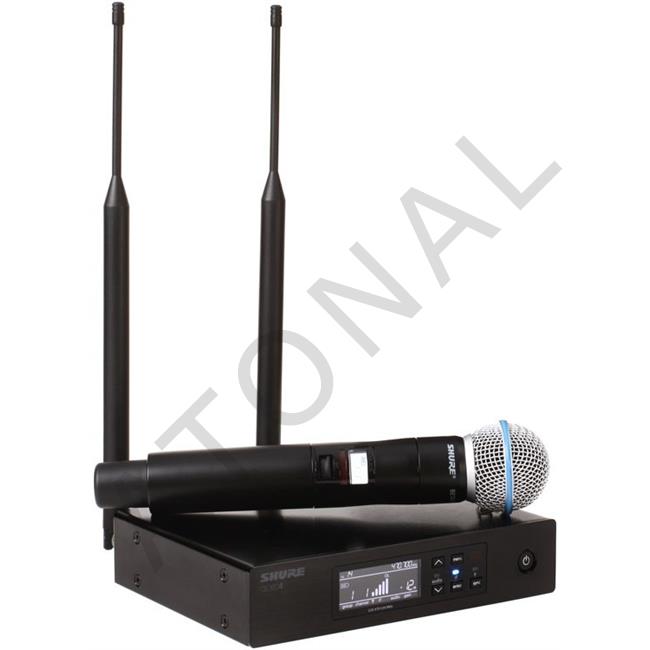

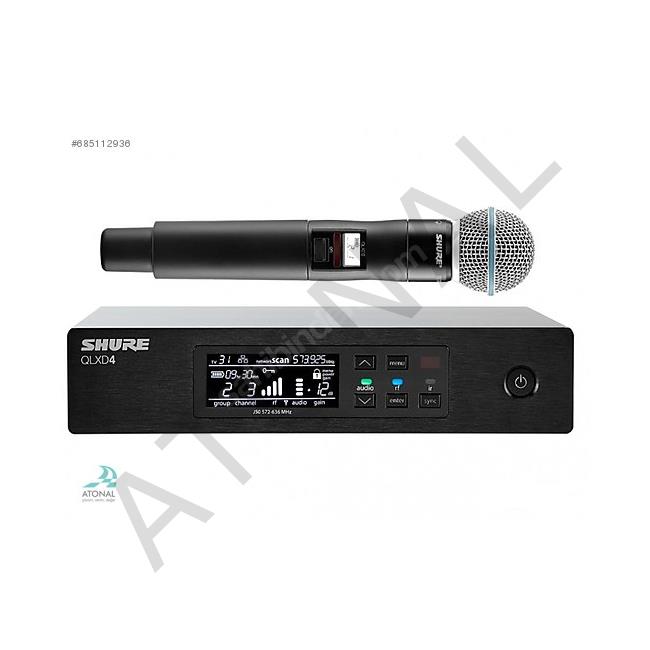

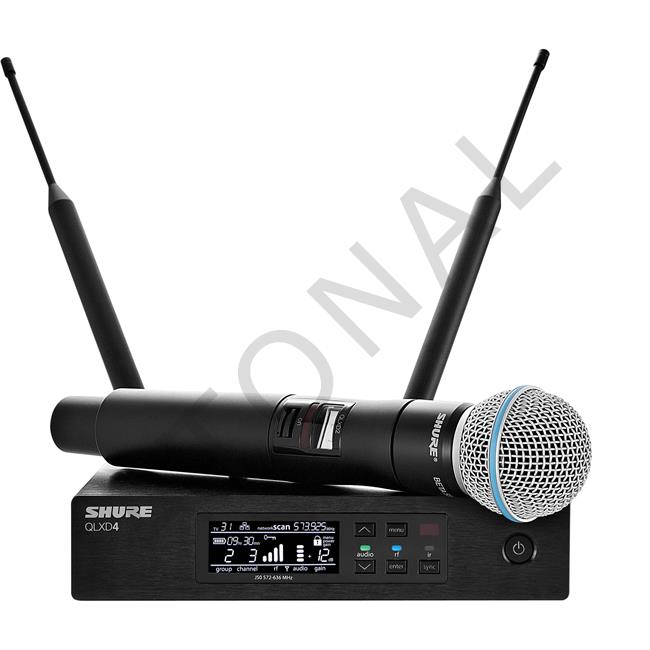

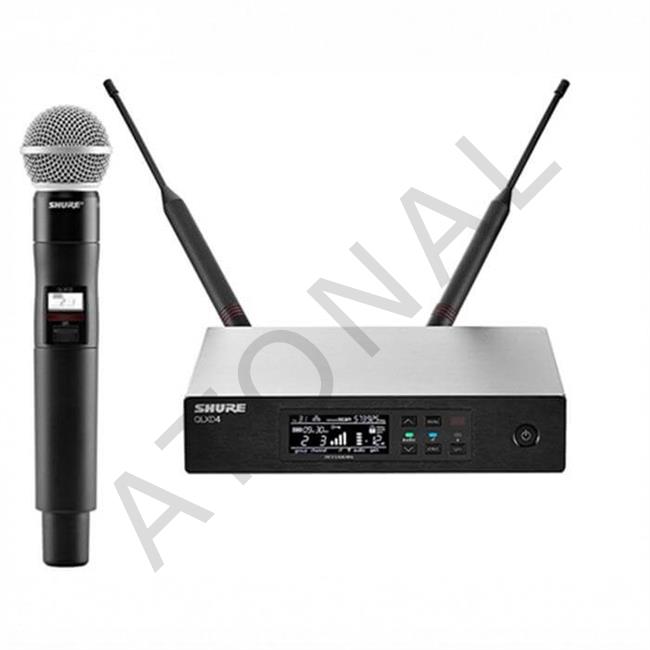

Shure QLXD24/B58 El Tipi Kapsül Telsiz Mikrofon Seti
The Shure ULX Series wireless microphone systems provide professional wireless microphone solutions for broadcast, performances, conferences, houses of worship, schools, and businesses. This wireless handheld system includes the ULXP4 receiver, and ULX2 handheld transmitter with a Shure Beta 58 supercardioid head.
ULXP4 Diversity Receiver
ULX2 Handheld Transmitter
Shure Beta 58 Capsule
Frekans
J1 - 554 / 590 Mhz
M1 - 662 - 698 Mhz
G3 - 470 / 506 Mhz
System
Type of System Rack/Table Top Mountable UHF Diversity Wireless Handheld System
RF Carrier Frequency Range 554.000 to 865.000MHz
Approx. Working Range 300 Feet (100m) NOTE: Actual working range depends on RF signal absorption, reflection, and interference
Overall Frequency Response 25Hz - 15kHz, (±2dB)
Signal-to-Noise Ratio Greater Than 90dB
# Of Channels Over 1400 User Selectable Frequencies (Frequency G3 / 470 - 505 MHz)
# Of Simultaneous Systems Up to 20
Receiver

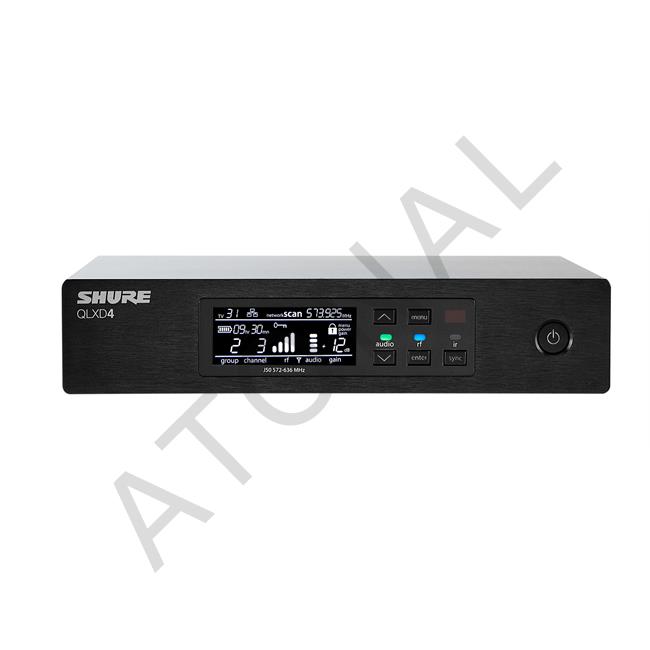

Type of Receiver ULXP4 Professional Rack/Table-Top Mount Receiver
Type of Outputs Balanced XLR - 22 Ohms, 1 = Ground, 2 = Hot, 3 = Cold
Unbalanced 1/4" Phone Jack - 3k Ohms, Tip = Hot, Ring/Sleeve = Gnd
(Both Outputs Feature: Voltage, Current and Phantom Power Protection)
Headphone Monitoring No
Power Requirements 14 - 18VDC (negative ground), 550 mA
External Power Supply - PS40, Included, Now with Locking DC Connector!
Battery Type/Approx. Life Not Applicable, Unit Does Not Operate on Batteries
Display Yes, Power On Indicator, Diversity Signal Indicators and Audio Peak Indicator, Channel, Group, Transmitter Low Battery Warning.
Mounting Options Rack / Table Top Mount 1/2 Rack Space
Antenna Type Internal
Dimensions 1.72 x 8.56 x 6.88" (43 x 214 x 172mm) HxWxD
Weight 10.4 oz. (296 g)
Transmitter

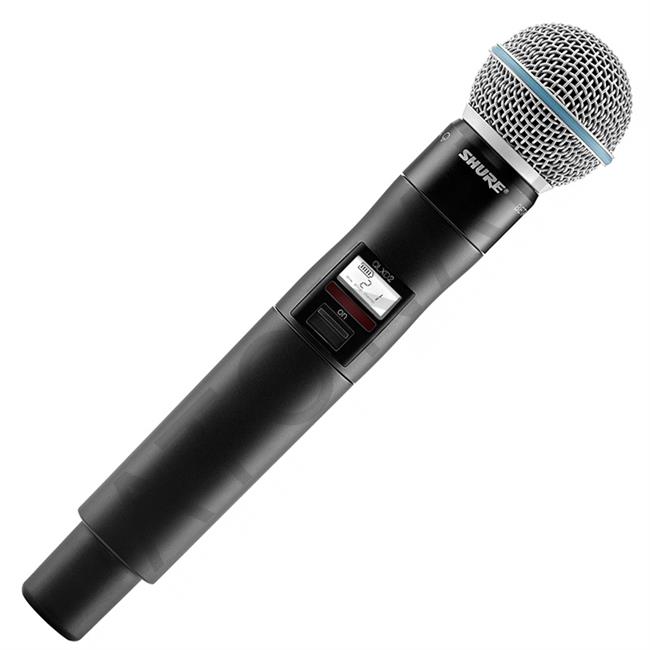

Type of Transmitter ULX2/BETA58 Handheld UHF Transmitter
Type of Input Connector Microphone Element is Attached (Screwed On) to Transmitter
Type of Microphone BETA58 Dynamic Microphone Head
Polar Pattern Supercardioid
Interchangeable Mic Heads No
Battery Type/Approx. Life Non-Rechargeable Type
9V Lithium Battery / 21 Hours (Recommended)
9V Alkaline Battery / 8 - 9 Hours (Recommended)
9V Carbon-Zinc Battery / 5 Hours (NOT Recommended)
