Specifications

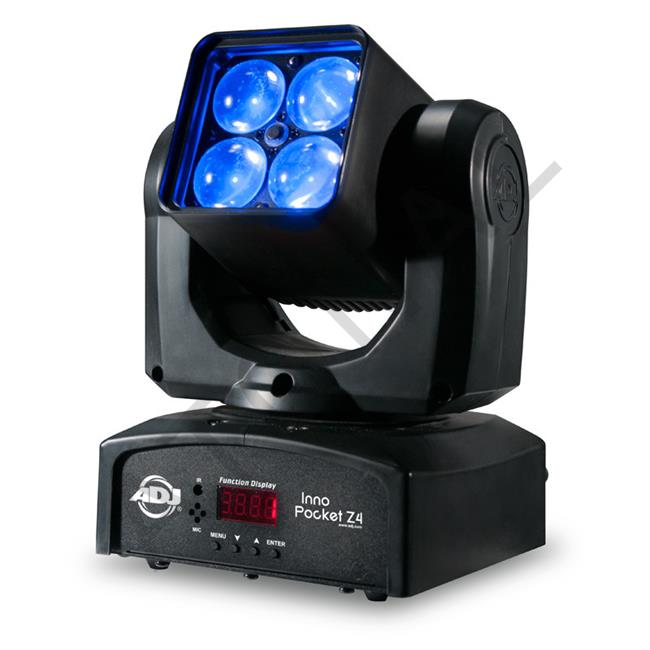

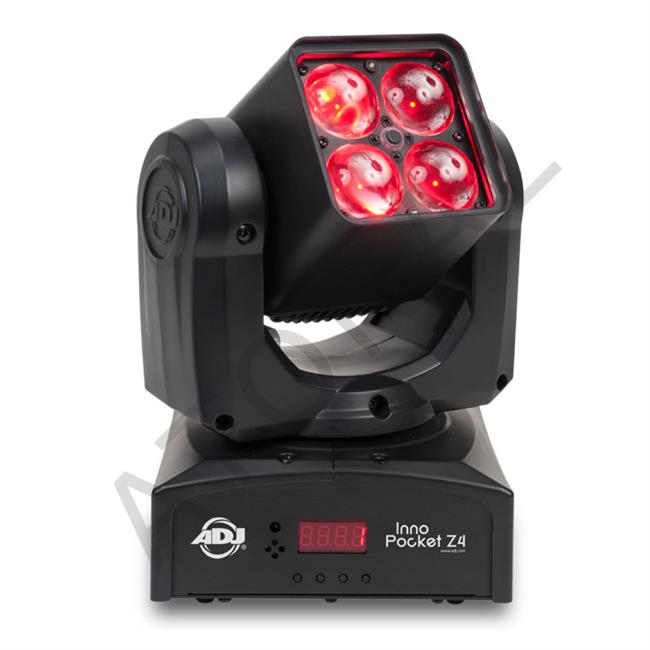

• High output mini Moving Head with a bright 4 x 10W Quad RGBW LED source

• 3 Operational modes: DMX Control, Sound Active Mode & Show Mode

• 3 DMX Channel Modes: 16/19/22

• 4 Built-in shows

• Stand Alone Set Up or Master-Slave Configuration

• Beam Angle: 10 - 60-degrees

• 540° pan / 180° tilt (8-bit & 16-bit)

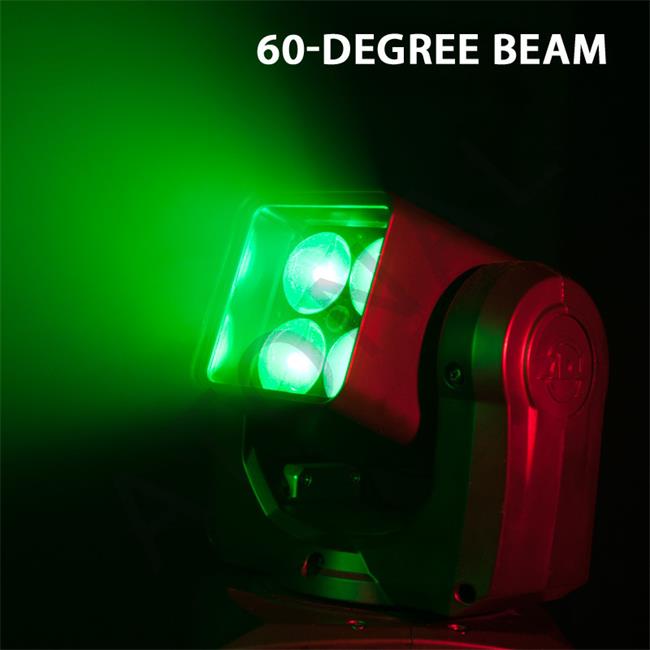

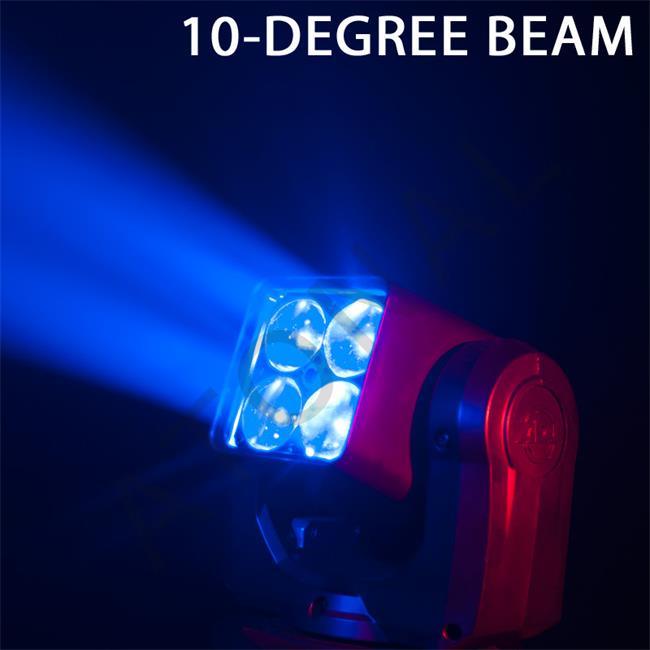

• Full ZOOM 10-60 Degrees

• Pan /Tilt Inversion mode

• 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)

• Shutter: Pulse effect; random strobe slow to fast

• Dimming: 0% - 100%

• Display Inversion Mode

• Mounting bracket included

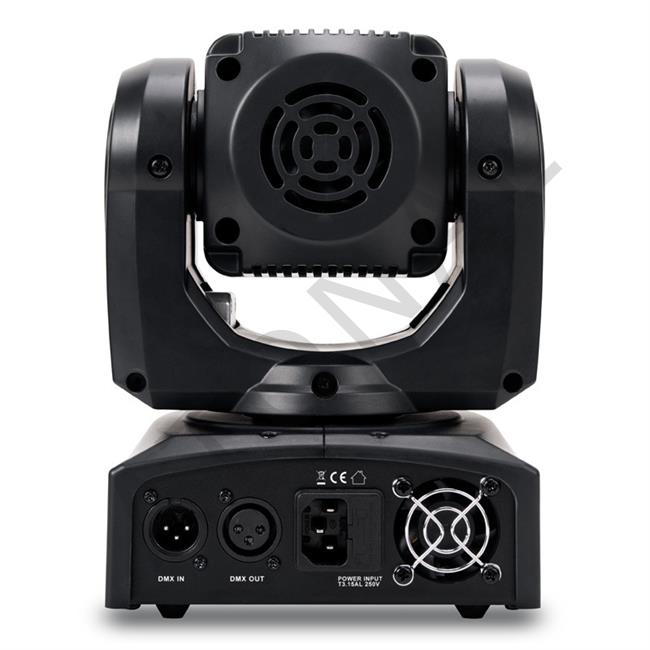

• Linkable: DMX via 3-pin XLR cable
• With Wired Digital Communication Network

• Optional ADJ UC IR wireless remote control (ADJ UC IR Not Included)

• Compatible with the ADJ Airstream IR App
• PWM (Pulse Width Modulation): 1.1K
• Strobe Rate: 0.7-12HZ
• Power consumption: 67W (Full-On)
• Light output: 5731 LUX @ 2M, 1431 LUX @ 4M (10-degree beam); 541 LUX @ 2M, 153 LUX @ 4M (60-degree beam)

• Multi-voltage Operation: AC 100 - 240V, 50/60Hz
• Power Cable Length: 1.5m (IEC)

• LED Source: 4 x 10W 4-in-1 RGBW LED source (Rated at approximately 50,000 hrs)

• Dimensions (LxWxH): 5.5” x 6.75” x 9.75” / 141 x 174 x 247mm

• Weight: 7 lbs. / 3.2 kgs.
• ETL Approved
