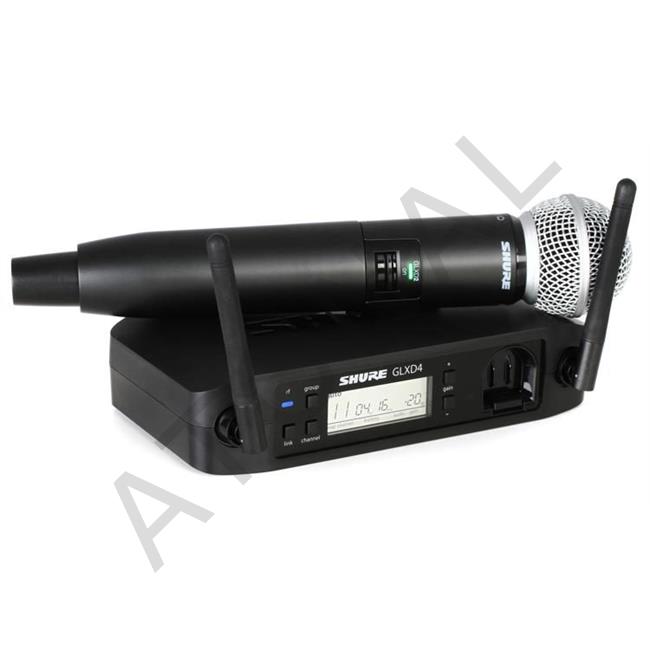

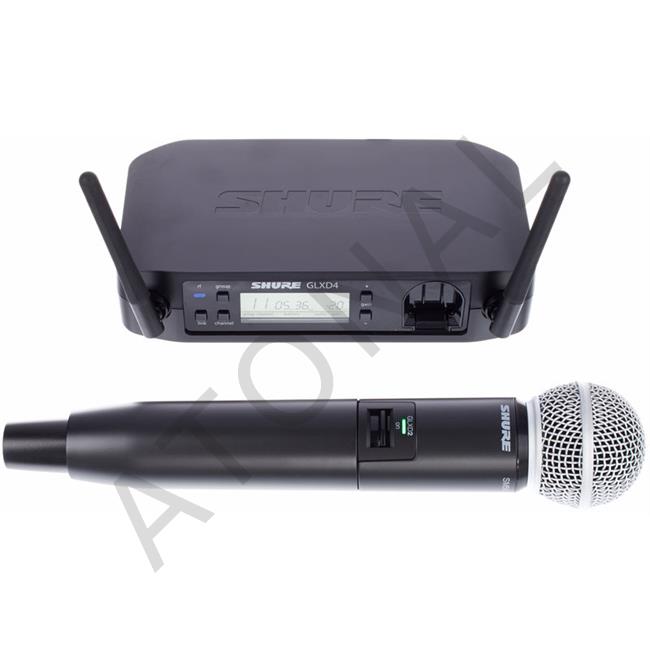

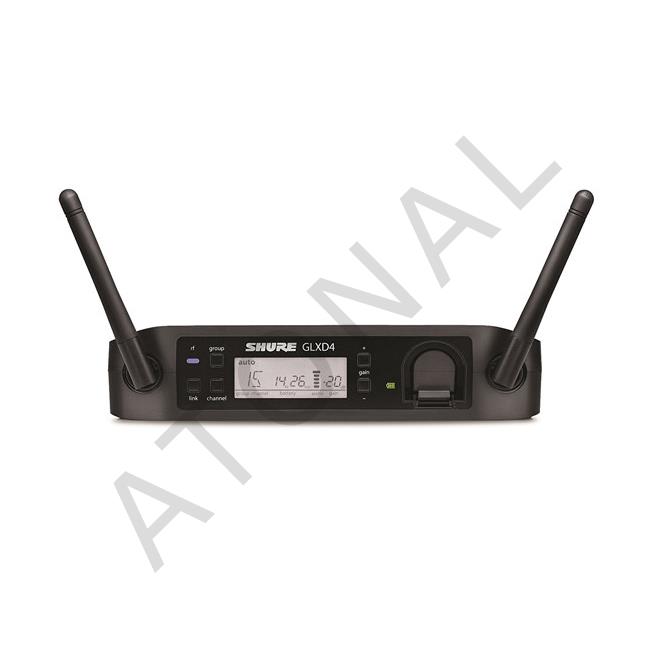

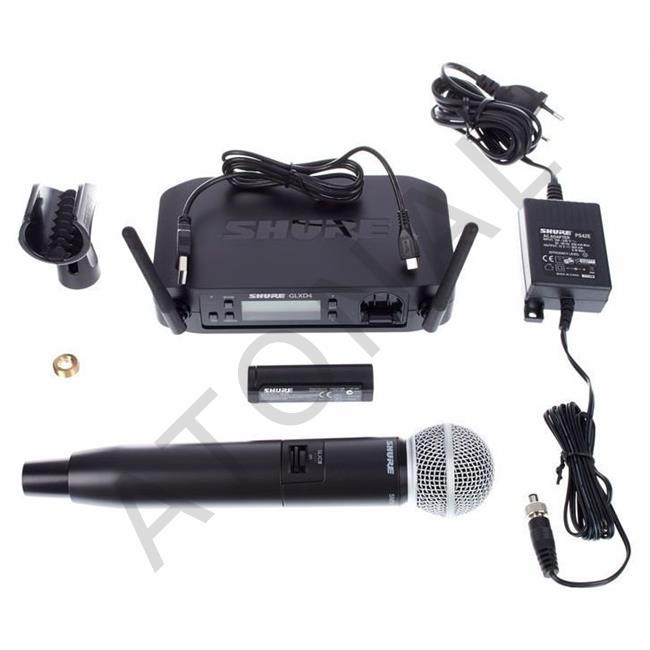

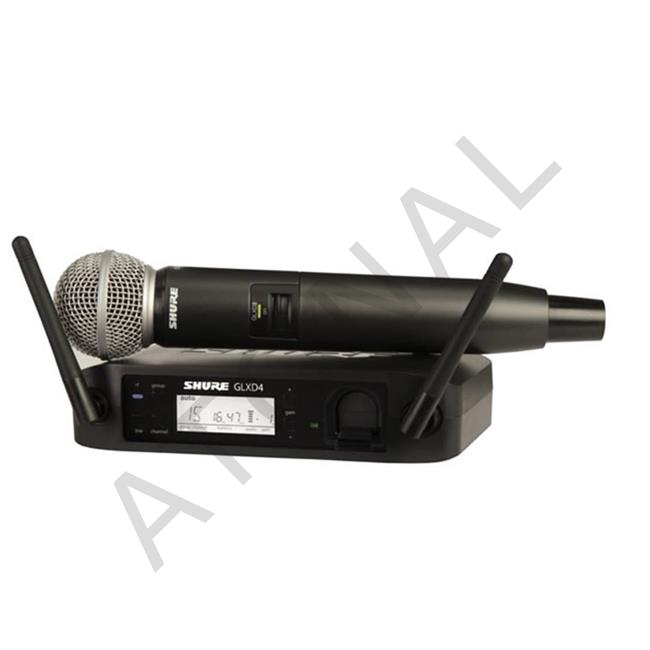

GLXD4 Wireless Receiver
GLXD4 tek kanal wireless receiver devrimsel nitelikte LINKFREQ otomatik frekans yönetimi özelliği ile (2.4 GHz frequency band) şarj edilebilir bataryaya sahiptir. Entegre şarj cihazı bağımsız biçimde Shure lithium-ion bataryayı, Sistem açıkken şarj edebilmektedir.
Genel Özellikler
24-Bit dijital ses kalitesi.
Kesintisiz sinyal kalitesi ve işletim gücü.
AES 256-bit şifreleme ile güvenli sinyal aktarımı.
120 dB üzeri dinamik güç
1, 10 mW seçilebilir RF çıkış gücü.
Harici şarj bağlantısı.
Backlit LCD ile kolay kontrol alanı
Seçilebilir ekran modu grup/kanal, frekans, veya batarya ömrü kontrol edilebilir.
Metal Kasa
Teknik Özellikler
Frekans Aralığı: 20 Hz–20 kHz
Şarh Edilebilir: Evet
Batarya Gereksinimi: 2 AA alkaline batarya veya SB900 Lithium-Ion şarj edilebilir batarya
Batarya Ömrü: Shure SB900: 10 saate kadar, Alkaline: 9 saate kadar
Sinyal bozulma mesafesi: 100 m
| 2.4 GHz ISM Band |
|
| Z2 Frequency Band |
|
| For Use with GLX-D Wireless Systems |
|
| LINKFREQ Automatic Frequency Management |
|
| Integrated Battery Charge Port |
|
| Continuous Interference Monitoring |
|
| Front-Panel LCD Screen |
|
| Use up to 8 Systems Simultaneously |
|
| Outputs |
1x XLR Output |
| 1x 1/4" (6.35 mm) Output |
| Output Impedance |
XLR: 100 Ω |
| 1/4": 100 Ω, 50 Ω unbalanced |
| Maximum Audio Output Level Analog |
XLR: 1 dBV (into 600 Ω load) |
| 1/4": 8.5 dBV (into 3 kΩ load) |
| Tuning Frequency Range |
2400 to 2483.5 MHz |
| Range of Operation |
200' (60 m) (typical, depends on RF signal absorption, reflection, and interference) |
| Transmit Mode |
Frequency Hopping |
| Frequency Response |
20 Hz to 20 kHz |
| Dynamic Range |
120 dB, A-weighted |
| RF Sensitivity |
-88 dBm, typical |
| Total Harmonic Distortion |
0.2%, typical |
| RF Output |
10 mW E.I.R.P., maximum |
| Operating Temperature Range |
0° to 135°F (-18° to 57°C) |
| Storage Temperature Range |
-20° to 165°F (-29° to 74°C) |
| Pin Configuration |
XLR: 1= ground, 2= hot, 3=cold |
| 1/4": Tip= audio, ring= no audio, sleeve= ground |
| Antenna |
Impedance: 50 Ω |
| Type: 1/2 wave sleeve dipole, non-removable |
| Max Input Level: -20 dBm |
| Power Requirements |
14 to 18 V DC (tip positive with respect to ring), 550 mA |
| Spurious Rejection |
>35 dB, typical |
| Gain Adjustment Range |
-20 to 40 dB in 1 dB steps |
| Phantom Power Protection |
Yes |
| Housing |
Molded plastic |
| Dimensions (HxWxD) |
1.6 x 7.2 x 4.6" (40 x 183 x 117 mm) |
| Weight |
10.1 oz (286 g) |
| |
|

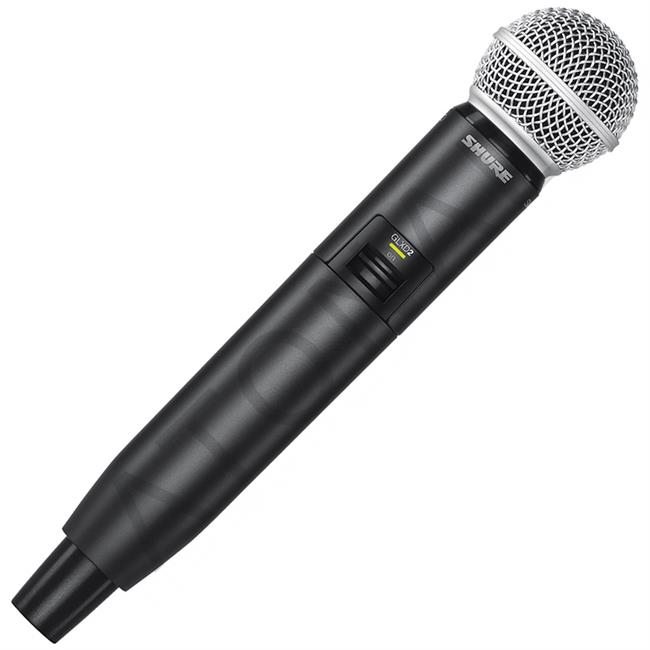

| GLXD2 Transmitter |
|
| |
|
| Transmitter |
| RF Power Output |
10 mW E.I.R.P, maximum |
| Maximum Input Level |
147 dB SPL |
| Power Requirement |
3.7 V Rechargeable Li-Ion |
| Housing |
Molded plastic |
| Dimensions |
Body Length: 9.9" (252 mm) |
| Body Width: 1.5" (37 mm) |
| Capsule Width: 2" (51 mm) |
| Weight |
|
