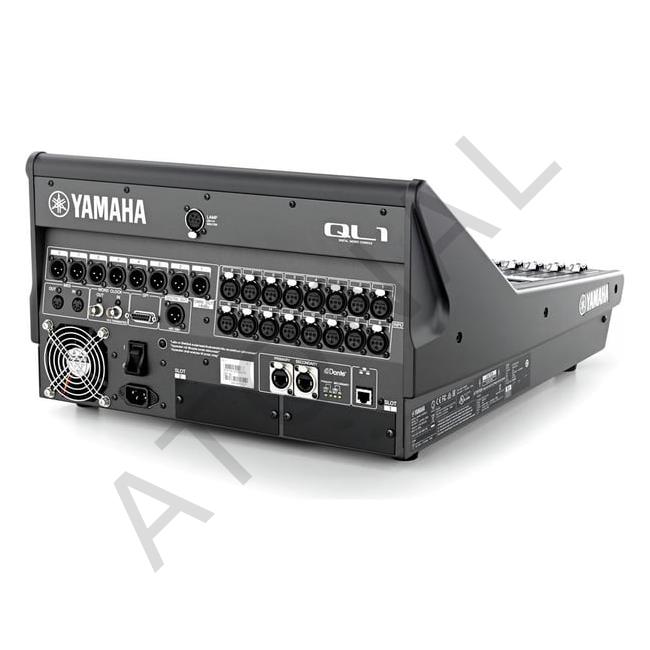

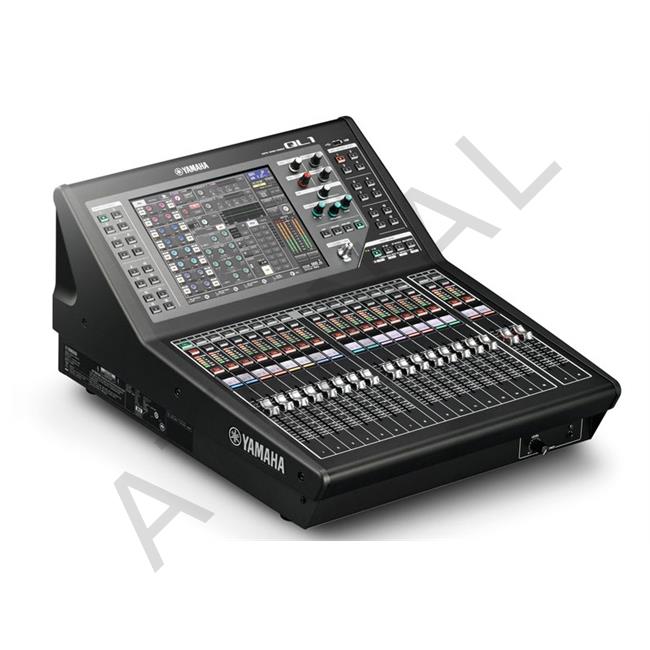

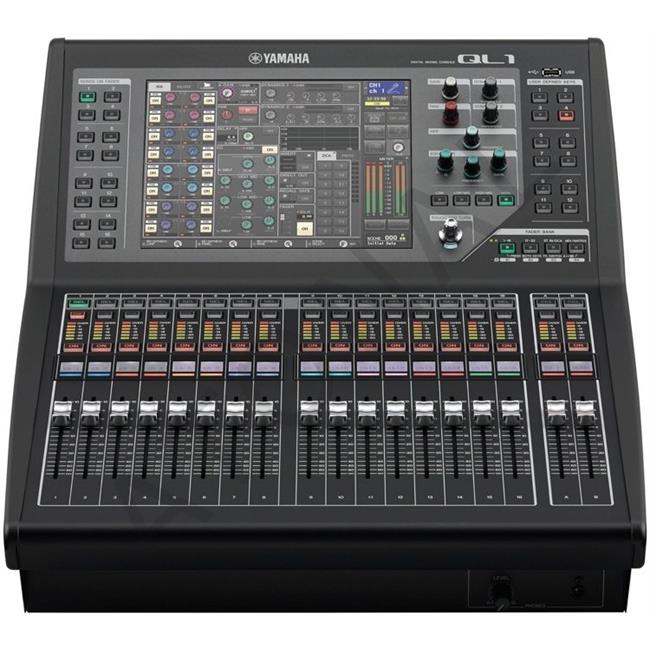

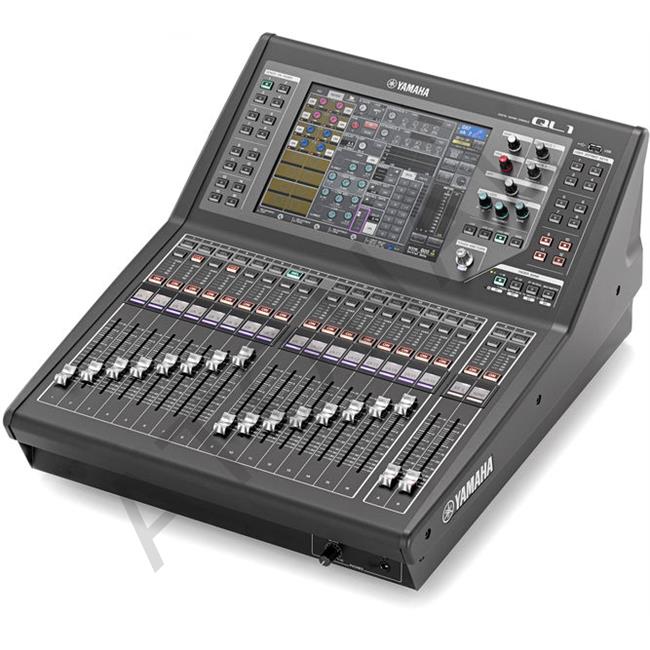

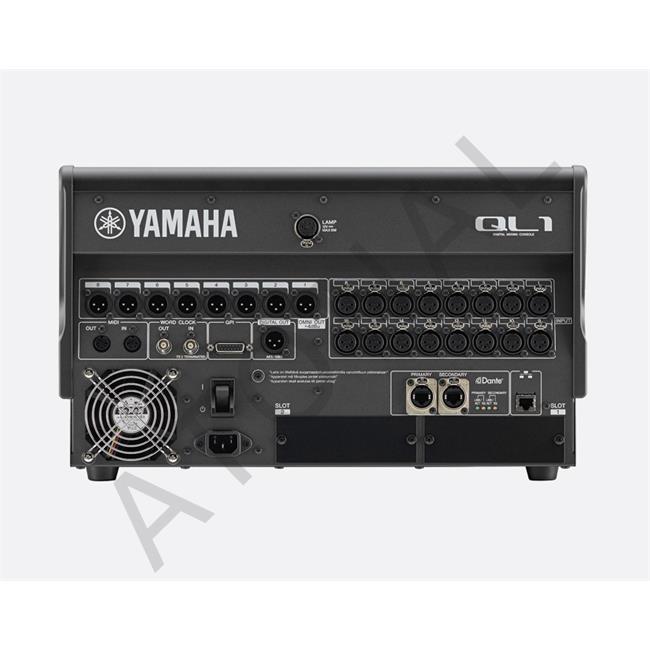

Yamaha QL1 Dijital Mikser
Özellikler
32 Mono + 8 Stereo Input Mix capability
16 + 2 Master Faders
16 Mic/Line inputs
8 Analog Omni Outputs
Built-in recallable HA
identical to CL and R-series
Direct file compatibility with CL.
No need to use Console File Converter Software
16 Mix + 8 Matrix + Stereo + Mono outputs (Matrix can be utilized as additional Mix sends for a total of 24 Mix Outputs)
16 DCAs
16 Mute Groups with Dimmer function
Large Touchscreen with excellent viewing angle and daylight visibility
same as CL
Touch-and-turn operation along with Selected Channel controls
Onboard Dante network with Primary/Secondary ports for redundancy or daisy chain
2 MY-Card Slots for additional I/O expansion or DSP processing such as Lake or Waves SoundGrid
8U Premium Rack featuring digital emulations of classic devices, Rupert Neve Designs Portico 5033 5-Band EQ and 5043 Compressor, as well as a unique Dynamic EQ
8U Effect Rack with enhanced presets for Sound Reinforcement
16U GEQ Rack featuring the Flex15 option for 32 GEQs
8 or 16 channels of Dugan Automixing. These units can be used in exchange for GEQ units
Built-in 2-Track Recording to an external USB memory stick
Control of Nuendo Live software (sold separately)
Dante Virtual Soundcard License included
QL Editor for PC/Mac and StageMix for iPad® will also be available at no charge
Specifications:
16 + 2 fader configuration in a compact, rack mountable unit
Mix channels: 32 mono, 8 stereo
Busses: 16 mix
8 matrix (Input to Matrix supported)
Local I/O: 16 in, 8 out
Fader configuration: 16 + 2 (Master)
Rack mountable with optional RK1 Rack Mount Kit
