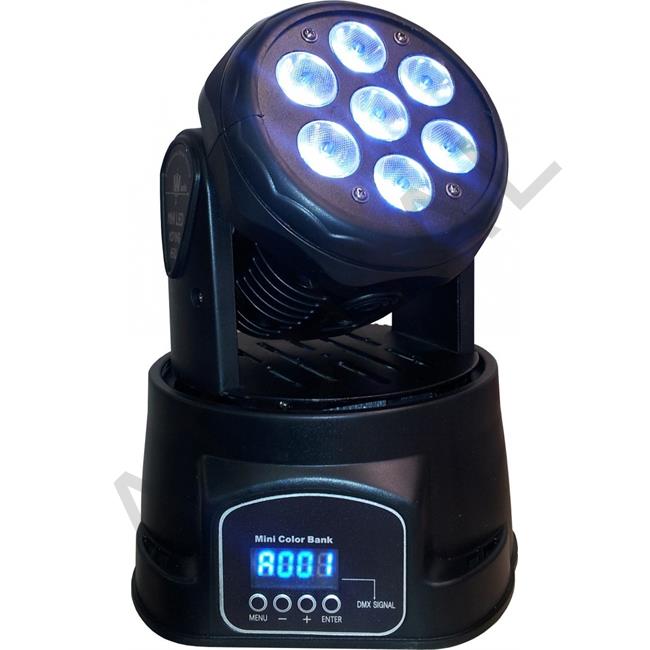

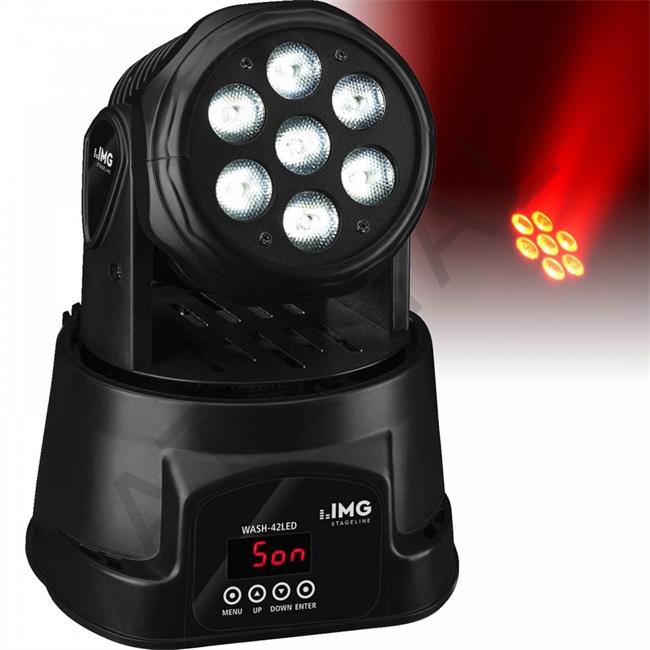

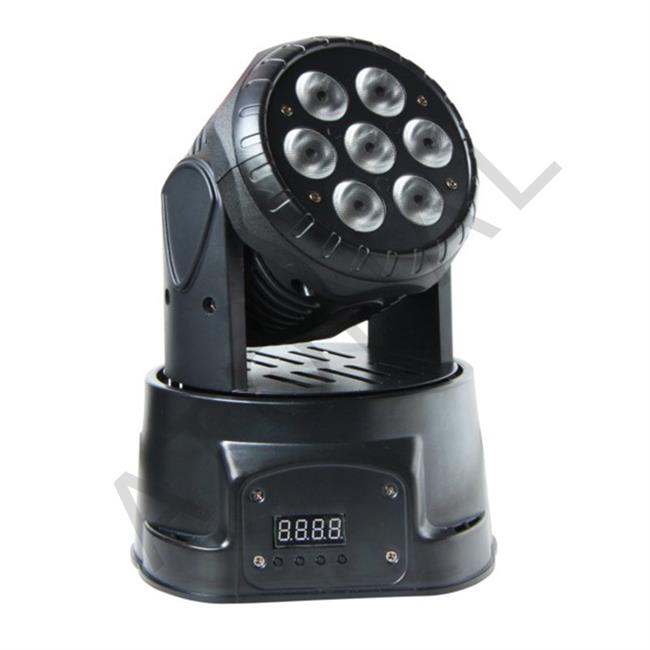

PL-14 Mini 7*10W LED Moving Head Wash Light
Power Supply: AC100-240V, 50-60Hz
Power Consumption: 80W
Light Source: 7pcs*10W 4in1 RGBW high brightness leds
Effect: RGB color mixing;
Variable electronic strobe;
Variable electronic dimmer (0~100%);
Vector speed channel for pan/tilt, RGB color mixing and color macros;
Built-in movement macros via master/slave or DMX;
User-selectable basic or advanced operating modes;
Compact and light weight;
LED display menu with invert;
Display auto on/off;
Pan/tilt invert option;
Pan cooled.
Beam Angle: 25 degree.
Strobe: effect with 1~25flashes per second and pulse effect
Pan: 540 degree
Tilt: 270 degree
Preset program: 8 built in programs can be called up via DMX controller
Control mode: DMX512, master-slave and sound activated controllable or auto operation
DMX Channel: 8/13 DMX Channels
Connectors: 3 -pin XLR signal connector input and output
Control Panel: LCD display
Function: Strobe, Dimmer, Color Changing, Color Mixing
Cooling System: Low noise and efficient FAN cooling system
Carton Package:
Body size: 225*225*270mm
Carton box package size: 265*220*270mm (1pc/carton)
N.W/G.W: 3.5kg/4kg
Carton box package size: 460*280*270mm (2pc/carton)
N.W/G.W: 7kg/8kg
