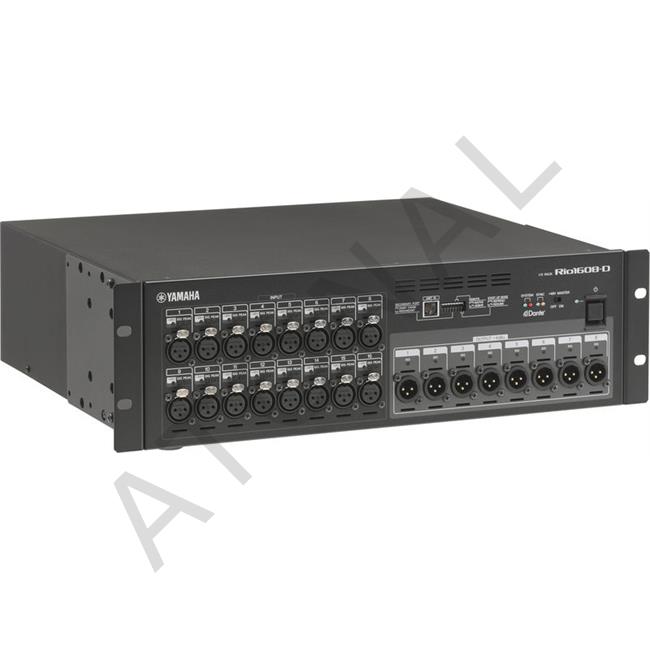

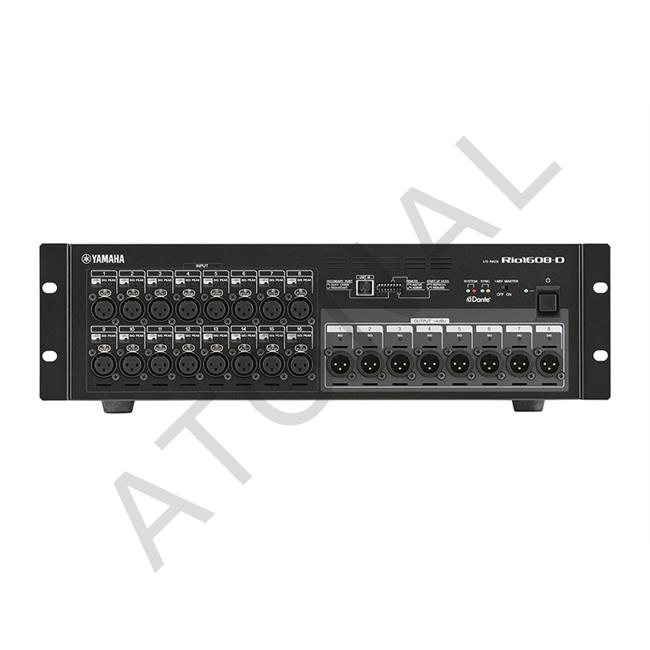

Yamaha Rio-1608 D
The Rio 1608-D is a 3U size that has 16 ins and 8 outs.
The “natural, musical sound” that was a key element of the CL Series design policy is carried on without compromise in the R Series. Mechanical construction, circuit board layout, power supply, grounding, and parts selection have all been executed with meticulous attention to detail and quality, combined with exhaustive performance and listening tests at each stage of development. The result is eminently natural, musical sound.
The main features of the Rio 1608-D include:
Sampling Frequency Rate: External: 44.1kHz (+4.1667%, +0.1%, -0.1%, -4.0%) ±200ppm 48kHz (+4.1667%, +0.1%, -0.1%, -4.0%) ±200ppm 88.2kHz (+4.1667%, +0.1%, -0.1%, -4.0%) ±200ppm 96kHz (+4.1667%, +0.1%, -0.1%, -4.0%) ±200ppm
Signal Delay:Less than 3ms INPUT to OUTPUT, connect with CL5 using Dante, Dante Receive Latency set to 0.25ms (one way), Fs=48kHz
Freq. Response: +0.5, –1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, INPUT to OUTPUT*1, Fs= 44.1kHz, 48kHz
+0.5, –1.5dB 20Hz-40kHz, refer to +4dBu output @1kHz, INPUT to OUTPUT*1, Fs= 88.2kHz, 96kHz
THD: Less than 0.05% 20Hz-20kHz@+4dBu into 600O, Fs= 44.1kHz, 48kHz Less than 0.05% 20Hz-40kHz@+4dBu into 600O, Fs= 88.2kHz, 96kHz INPUT to OUTPUT*1, Input Gain= Min.
Dynamic Range: 108dB typ., INPUT to OUTPUT, Input Gain = Min.
Hum & Noise Level: -128dBu Equivalent input noise, Input Gain=Max., -88dBu Residual output noise, ST master off
Crosstalk: -100dB, Adjacent INPUT/OUTPUT channels Input Gain=Min.
Phantom Power: +48V
Power Requirements: AC110V-240V, 50/60Hz
Power Consumption: Rio3224-D: 120W Rio1608-D: 70W Ri8-D: 35W Ro8-D: 35W
Temperature Range: Operating temperature range: 0 - 40° Storage temperature range: -20 - 60°
Dimensions [WxHxD]: Rio1608-D: (18 7/8in x 5 3/4in x 14 1/4in)
Net Weight: Rio1608-D: 8.8kg (19.4lb)
