Rcf ART 735 A MK II - 15 inç 2-Yollu 1400W Aktif Kabin
1400 Watt Peak, 700 Watt RMS digital amplifier
132 dB max spl
90 x 60, Wide dispersion constant directivity horn
15" high power woofer, bass reflex housing
3.0" voice coil, titanium, compression driver
PFC power factor correction
DSP Processing
20.8 Kg / 45.8 lbs
Akustik
Frequency Response -3 dB:45 Hz ÷ 20000 Hz
Max SPL:132 dB
Horizontal coverage angle:90°
Vertical coverage angle:60°
Compression Driver:1.4" , 3.0" v.c.
Woofer:15", 3.0" v.c.
I/O
Input signal:Bal / unbal
Input connectors:Combo xlr-jack
Output connectors:xlr
Input sensitivity:-2 dBu / +4 dBu
Sinyal İşlemci
Crossover frequencies:900 Hz
Protections:Thermal, rms
Limiter:Soft limiter
Controls:Volume, EQ shape
Amplifikatör
Total power:1400 W PEAK
High frequencies:400 W PEAK
Low frequencies:1000 W PEAK
Total power:700 W RMS
High frequencies:200 W RMS
Low frequencies:500 W RMS
Cooling:Convection / forced
Connections:VDE connector in
Kabin
Cabinet Material:Composite PP
Hardware:2xM10 flying p.

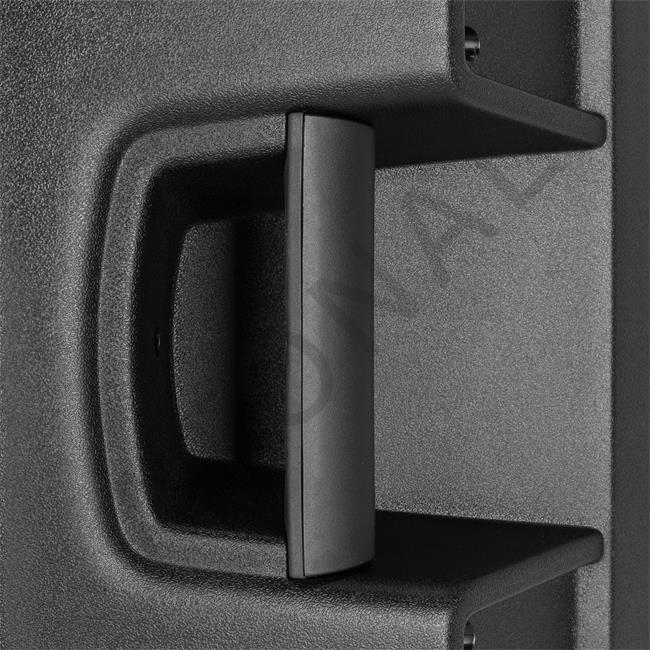

Handles:2 side, 1 top
Pole Mount/Cap:Yes
Colour:Black
Ölçüler
Height:708 / 27.87 mm/inch
Width:437 / 17.2 mm/inch
Depth:389 / 15.31 mm/inch
Net Weight:19.6 / 43.2 kg/lbs
